HandySCAN - Model Black Series -Professional Metrology-Grade Portable 3D Scanners
The HandySCAN 3D™ line-up is the reference in portable metrology-grade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere. This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.
HandySCAN 3D|BLACK Series is the fastest portable metrology-grade 3D laser scanner on the market, offering the highest measurement rate and accuracy available. It’s ideal for product development and quality control.
Accuracy
- 0.025 mm (0.0009 in)
- 0.012 mm (0.0005 in) with Limited Edition
- Accuracy of 0.025 mm
- ISO 17025
- Large scanning area
- Scan-to-mesh in seconds
- Worldwide support
- Patented technology
Looking for the ultimate portable metrology-grade 3D scanner for quality control or product development?
Our experts will find the perfect 3D measurement solution for your needs!
The HandySCAN 3D|BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and high-quality scan.

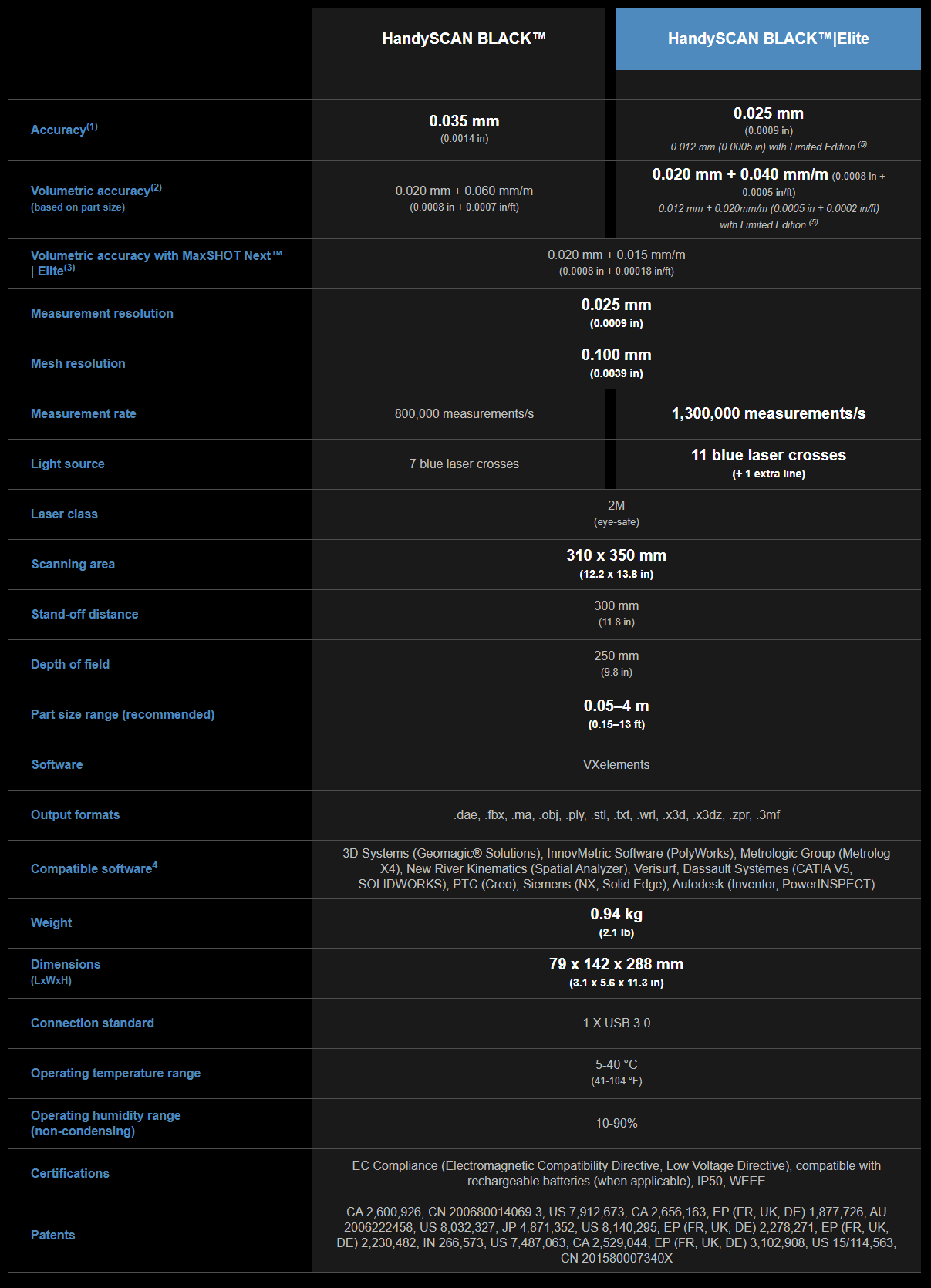

- Accuracy
0.025 mm (0.0009 in)
0.012 mm (0.0005 in) with Limited Edition - Volumetric accuracy
0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)ds
0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) with Accu+ Kit
0.012 mm + 0.015mm/m (0.0005 in + 0.00018 in/ft) with Limited Edition - Reliable acceptance test
Based on VDI/VDE 2634 part 3 standard
Based on ISO 10360 standard
ISO 17025: 2017 accredited laboratory - High resolution for fine details
- Integrated photogrammetry
High accuracy on large measurements with volumetric accuracy optimization
This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.
- Lightweight
0.94 kg (2.1 lb) - Self-positioning with dynamic referencing
- Fits into a suitcase
- Take it anywhere you need
The HandySCAN 3D|BLACK Series scanners features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!
- Ready-to-use files
- High measurement rate
Up to 1,300,000 measurements/s - Large scanning area of 11 laser crosses
- Quick setup
Up-and-running in less than 2 minutes
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device
- Plug and play
- Simple user interface and real-time mesh visualization
- Masters complex and difficult surfaces
- One device for all shapes and sizes
Our Centers are located all around the world and offer the following services* in different languages.
- Software and hardware Technical Support Helpline
- 3D scanner basic and advanced repair
- Equipment maintenance and tuning
- Loaner services
- 3D scanner component replacement
- Parts reselling
- Warranty renewal
* Services may vary depending on 3D metrology center
Creaform designs, manufactures, and calibrates HandySCAN 3D scanners with the highest quality management system according to internationally recognized standards ISO 9001 and ISO 17025.
HandySCAN BLACK’s acceptance test is based on VDI\VDE 2634 which is ISO 17025 accredited to guarantee traceability to international standards.
Each scanner is delivered with a personalized certification and fully documented test results.
International Metrology High-Quality Standards
At Creaform, product and service quality is our top priority. Being pioneers in portable 3D measurement, we are committed to exceeding our customer requirements by developing innovative solutions. We are invested in continuously improving processes, setting new standards for the industry and ensuring full satisfaction of our clientele.
Quality control
- First article inspection (FAI)
- Part-to-CAD inspection
- Supplier quality inspection
CAD design
- 3D scan-to-CAD
- Reverse engineering (extracting design-intent)
- Packaging design
Replacement/Recycling
- Reverse engineering for developing replacement / Restoration parts
- Planning of complex assemblies disassembly/Dismantling
Tooling design
- Reverse engineering of dies, molds, fixtures, jigs and patterns
- Update of CAD file to reflect as-built tooling measurements
- Tooling validation/Inspection
Assembly/Production
- Virtual assembly
- Tool/Robot path programming
- Part assessment before machining
Prototyping
- Rapid prototyping / Manufacturing
- Integration of prototype modifications into CAD file
- Prototype inspection
Testing, simulation and analysis
- Finite element analysis (FEA) Interference analysis
- Deformation, geometry analysis
Requirements and specifications
- Competitive product analysis
- Measurement of product environment or connecting/ Surrounding parts
- Measurement of existing parts for aftermarket or custom equipment
Concept design
- Clay model measurement/Reverse engineering
- Models and mock-ups measurement/Reverse engineering
- Styling and aesthetics
Concept prototyping
- Integration of prototype modifications into CAD file
- Form study, proof-of-concept prototypes
- Ergonomy prototypes
Documentation
- As-built documentation of parts/Tooling
- Marketing presentations, 3D training systems, serious gaming
- Digital archiving
Maintenance, repair and overhaul (MRO)
- Wear and tear analysis
- Custom repairs/Modification
- As-built documentation of parts / Tooling before maintenance
VXelements
The HandySCAN 3D comes with VXelements, which powers our entire suite of 3D scanning and measurement technologies. It combines all the essential tools you need from data acquisition to CAD Software, in a user-friendly, simplified and sleek working environment.
Software Module
VXinspect
Dimensional inspection software module
VXmodel
Scan-to-CAD software module
Pipecheck
NDT pipeline integrity assessment software
