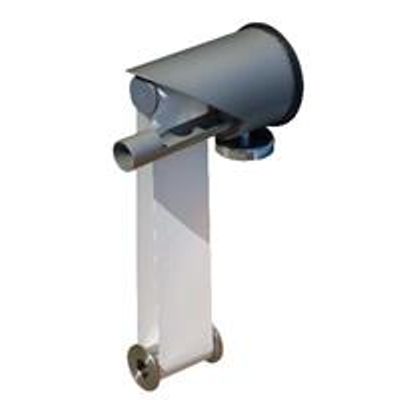

Schnell-Teknik - Model Type C -Professional Oil Skimmer
Professional oil skimmer for fast and efficient tramp oil removal. Max. temperature 40ºC. Easy installation and belt replacement
Oil skimmer for tramp oil removal in tool machinery coolant. With high capacity.
- Magnetic stand makes the skimmer very easy to install.
- 60mm belt width ensures high capacity.
- Max temp. 40ºC
Type C is a compact and highly efficient oil skimmer. It is made in sand blasted stainless steel, providing it with a modern look. The oil skimmer is suitable for fast removal of unwanted tramp oils in tool machinery coolant tanks, and other cases where unwanted surface oils must be removed.
The only limitation is the pH value. When working in harsh environments such as acid or alkali, type 28 or 56 should be used.
The oil skimmer operates on a safe 24 volt, and is mounted on a powerful magnet. This makes the skimmer very easy to install.
Because of our wide selection of belt lengths, Type C can be used in almost all types of reservoirs.
- Connection: 230/24Vac 50Hz 4 VA
- Capacity:* Max. 6,0 Itr. oil pr. hour
- Max. bath temp: 40°C
- pH working area: Ph 6-9
- Outlet: 025 mm
- Dimensions & weight: 0 80x140 mm. • 0,6 kg.
- Belt width: 60 mm
- Belt lengths (mm.)**: 600 - 2000 mm (200mm interval).
`Capacity test made in oil only
**For other belt lengths please contact your distributor.
