Control Pro, Inc.

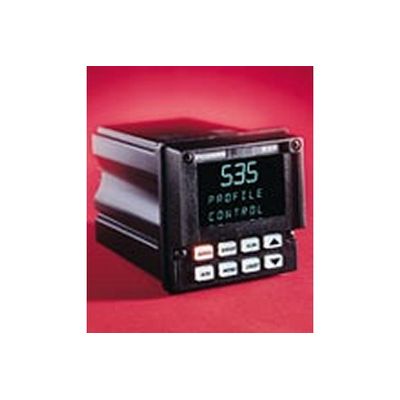

CPI - Model 535 -Profile Controller
The 535 Profile Controller provides full ramp and soak capability with the following features: 20 Recipes/programs may be stored in memory.
Most popular related searches
- 24 segments of 12 ramps and 12 dwells for each recipe.
- Guaranteed soak with adjustable hysteresis
- 3 event output capability
- Ramps program in time or rate
- Dual time base of either hours:minutes or minutes:seconds
- Multiple cycles, 1-99 per each recipe allow each recipe to be repeated up to 99 times.
- Recipe linking provides that all 20 recipes may be linked for new longer versions.
- Remote functions via digital inputs: start, hold, reset, abort, and segment
- Modify recipes while running
- Remote recipe choice via digital input
- Power restoration modes provides 4 different responses to power failure
- Tie PID sets to recipes or segments to optimize control
- Master/Slave capability: Transmit the ramping setpoint to up to four 535 controllers
- Segment advance allows the operator to advance the program while it`s running
- NEMA 4X instrument front or Field Mount Case
Operates as standard 535 controller when recipe not activated
