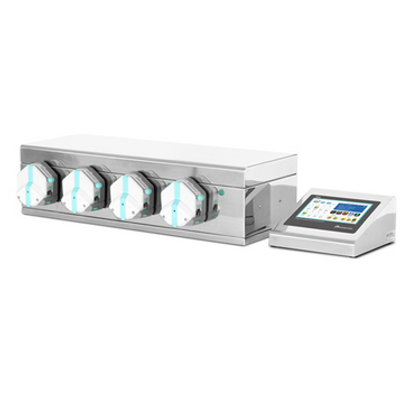

Innofluid - Model PDS III -Programmable Dispensing System
7 inch touch screen control, easy and convenient operation. One controller can control maximum 8 pump units. Support both transferring and dispensing function. Each unit working with same or different parameters. Pump units can be separately or integrated.
Most popular related searches
- Different pump units can fit for same or different pump heads.
- Pump can be cotrolled with touch screen foot switch, switch signal and communication.
- Two working modes: continuous transferring and dispensing.
- Each unit woking independenty, can fill same or different volume.
- Support intelligent calibration and online adjusting function ensure the flow rate and dispensing accuracy.
- Store function: Can store 5 groups parameters, and easy to recall it.
- Store RS232/RS485 communication; support external control start/stop; support missing bottle stop filling function.
- The pump can be integrated or split type.
- Dispensing volume range: 0.1-9999.99mL
- Dispensing time range: 0.5-9999.99s
- Pause time range: 0.5-9999.99s
- Repeat number range: 1-9999, 0 means unlimited.
- Volume resolution: 0.01mL
- Time resolution: 0.01s
- Back suction angle: 0~360°
- Store: 5 parameter programs can be stored and easily recalled
- External control method: Passive switch signal: Foot pedal, Active switch signal: Universal 5~24V
- Communication method: RS232/RS485,supports Modbus protocol(RTU mode)
- Pump unit power supply: AC 220V±10% 50Hz/60Hz(Standard), AC 110V±10% 50Hz/60Hz(Optional)
- Controller power supply: 5VDC/2A adapter(Standard)
- Temperature: 0~40?
- Relative humidity: <80%
- IP rate: IP31
