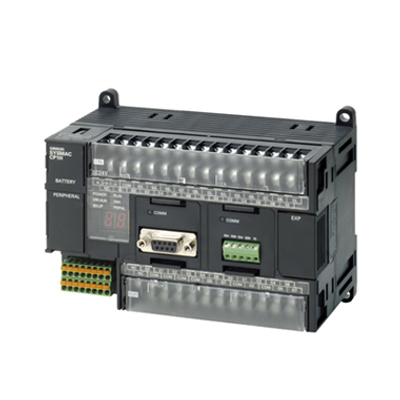

Omron - Model CP1H -Programmable Logic Controllers
Micro PLC for 4 Axis Position Control and high speed control in a compact package. Designed for compact machines, the CP1H is the advanced high-speed all-in-one compact PLC. Four high-speed counters and four pulse outputs are ideal for multi-axis positioning control.
Most popular related searches
The CP1H-XA comes with four analogue inputs and two analogue outputs built-in. This makes it suitable for simple loop control, using the PLC's advanced PID control function with auto-tuning. The CP1H can be expanded with different I/O and supports up to two CJ1W special I/O units. This means that it is open to popular fieldbuses and supports most communication units of the CJ series.
- Battery Backup: Yes
- Communications: USB, 2 Option Ports
- Display: 2 Digit 7 Segment
- Input type: DC
- Number of Expansion IO: 7
- Number of Option Modules: 2
- Real-time clock, calendar: Yes
