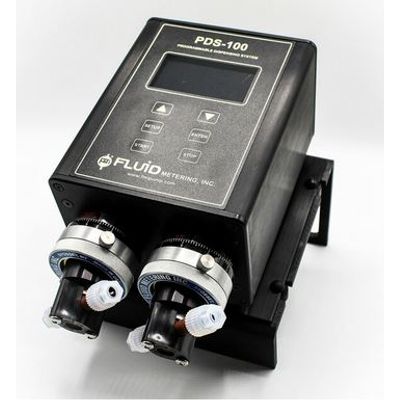

FMI - Model PDS100-2RH-RH00STY -Programmable Precision Dispenser
The PDS100-2RH-RH00STY is a programmable precision dispenser.
Most popular related searches
- CeramPump® No-Valve Fluid Control Technology
- Intuitive menu-driven programming uses front panel membrane switches with 2.75" x 1.5" LCD display
- Pump heads are integrally mounted to control unit, which includes precision stepper motors, drivers and programmable electronics housed in a rugged, anodized, aluminum enclosure
- Ideal for process & production single and dual channel dispensing & filling
- RoHS Compliant
- Flow Rate Max (ml/min): 37.5
- Flow Rate Min (ml/min): 0.036
- Operating Pressure Max (PSIG): 100
- Operating Pressure Max (Bar): 6.9
- Operating Temperature (F): 140
- Operating Temperature (C): 60
- Wetted Materials: Piston: 316 Stainless Steel
- Wetted Materials: Cylinder Liner: Carbon
- Wetted Materials: Cylinder Case: ETFE
- Dispense Resolution Max (ml/rev): 0.025
- Dispense Resolution Min (ml/rev): 0.003
- RPM (Min/Max): 6/750
- Input Supply: 100-240 V AC
- Frequency (Hz): 50/60
- Current Max (amps): 0.6 / 0.25 A
- Drive Environmental Temperature Rating: 41 deg to 104 deg F.
