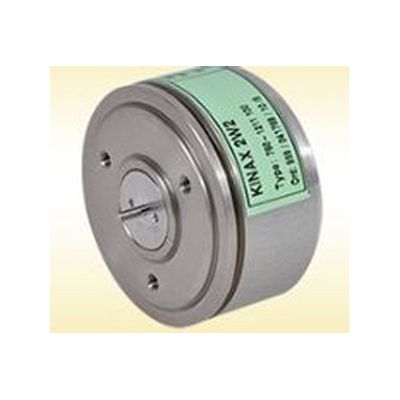

KINAX - Model 2W2 -Programmable Transmitter for Angular Position

Transmitter with a contact free, capacitive sensor system for the acquisition of the angular position of a shaft. The output is a load-independent DC current signal of 4...20 mA proportional to the measured value.

Most popular related searches

angular position transmitter

hazardous area modeling

hazardous area monitoring

hazard modeling

Patented contact free capacitive sensor system
Measuring range, direction of rotation, characteristic, switching point and other additional functions programmed using PC / Simplifies project planning and engineering, short delivery times, low stocks
Measuring range of angle of rotation: 0...10 to 0...50 or 0...50 to 0...350°
Measuring output (output/powering circuit) in two-wire connection (4...20 mA signal)
Very low torque (< 0.001 Ncm, with 2 mm shaft)
Advantage: The shaft can be rotated practically without any reaction effects and is therefore not a «load» on the connected devices.
Compact size, only 48 mm diameter
Advantage: it can be installed anywhere (OEM)
Type of protection "Intrinsically safe" Ex ia IIC T6 / Can be mounted within the hazardous area
Simulation of measured values / The testing of the subsequent device chain is already possible during the installation phase
Measured value acquisition / Display of the instantaneous value and a trend graph of the measured value on the screen
Adjustment / Independent fine adjustment of the analog output, zero position and measuring range
Characteristic of the output value /
Programmable as a linear, V-characteristic, or any characteristic curve
The shaft can be turned through a full 360°
Serial interface
