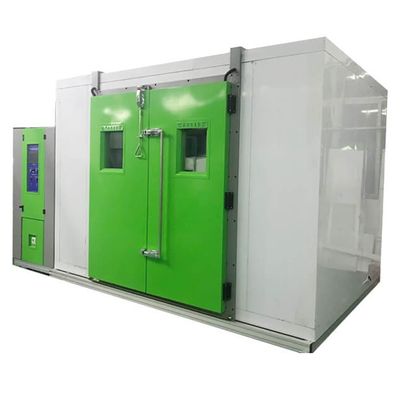

Bonad - Model BND-PTHW-12000B -Programmable Walk-in Environmental High and Low Temperature Test Chamber

FromShenzhen Bonad Instrument Co., Ltd.

SHARE

Programmable Walk-in Environmental High And Low Temperature Test ChamberType:BND-PTHW-12000BLimit sampleThe test equipment prohibits: Flammable, explosive, volatile substances Specimen test or storage Test or storage of corrosive substances Test or storage of biological samples Test or storage of samples of strong electromagnetic emission sources.

Most popular related searches

temperature test chamber

biological sample testing

humidity test chamber

high-low temperature test chamber

environmental test chamber

emissions source

biological sample

biological sampling

Product name Model: Programmable constant temperature and humidity test chamber BND-PTHW-12000B
Limit sample
- The test equipment prohibits:
  - Flammable, explosive, volatile substances Specimen test or storage
  - Test or storage of corrosive substances
  - Test or storage of biological samples
  - Test or storage of samples of strong electromagnetic emission sources
Volume, size and weight: 12000L
2.1. Nominal volume: W3000 X H2000 x D2000mm
2.2. Inner box size: W4000 X H2300 x D2200mm
2.3. Dimensions: 2.4. Weight
2.5.door: Large inspection glass door box single open W800 × H1800 mm
performance
Testing conditions: Ambient temperature of +25 ºC, relative humidity ≤ 85%, test chamber without sample conditions
Testing method: GB/T 5170.2-1996 temperature testing
Temperature range: -20ºC→+85ºC
temperature fluctuation: ±0.5ºC
Temperature deviation: ±2.0ºC
Humidity range: 20%~98%R.H
humidity fluctuation: ±2.5%R.H.
humidity uniformity: 75%±3.0% 75%±5.0%.
Temp.rising speed: +10ºC→+80ºC 25 min nonlinearity(loaded).
Temp.falling speed: 1ºC/ min nonlinearity(loaded,The control system is automatically adjusted)
standards: IEC68-2-1 test A: IEC68-2-2 test B:
