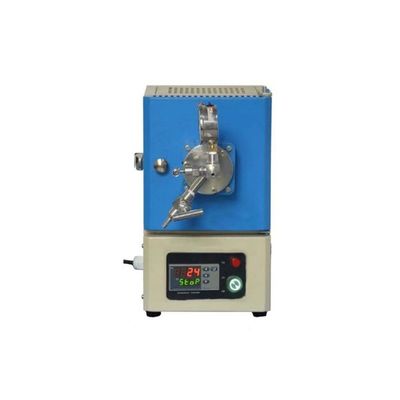

ProgramTherm - Model PH L3/12 -Hybrid Muffle Furnace 1200 C for Laboratory

Hybrid muffle furnace integrates a chamber muffle furnace and a tube furnace in one, compact, light weight, easy to operate. Designs with inlet and outlet ports on the quartz tube with sealing flange attached in the chamber. A compact hybrid muffle furnace could be used for materials heat treatment processing under atmosphere or vacuum condition at a max working temperature of 1200?, applicable for material sintering, heating preparation of Li battery, Carbon, graphene materials etc.

• Tmax 1200?
• Hybrid muffle / tube furnace, dual purpose
• One-end closed 2″ quartz tube, a tube block, and a corresponding sealing flange and pressure gauge
• Multiple atmosphere processes in a single cycle are possible
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Embedded heating elements on 3 sides give an improved temperature gradient
• Flanges support provides better sealing and longer tube life
• Type N thermocouple. Equips two pcs, one for temperature testing, the other for protection
• CE certified, standard

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

• Model No. : PH L3/12
• Chamber size (DxWxH) : 150x150x150mm /6x6x6″
• Furnace tube : Tube materials:Quartz
• Tube size:OD50x230mm
• Heating length:150mm
• Atmosphere : Inert gases or vacuum
• Power supply : 2KW
• AC208-240V, 50/60Hz, single phase
• Working temperature : Tmax 1200°C (2192°F)
• Continuously 1100°C (2012°F)
• Temperature uniformity +/- 5C
• Temperature controller : Shimaden PID controller
• Auto-tune function
• Programmable 32 segments
• Temperature accuracy +/- 1°C
• Heating element : HRE resistance coil wire
• Heating rate : ≤25°C / min
• Thermocouple : N type
• Equip two pcs, dual protection
• Chamber lining : Mitsubishi Raw Material high alumina 1500# fiber board
• Electronic components : Schneider maker air switch, AC contactor, SSR Relay etc.
• Shipping info : Weight: 160 kgs
• W700xL970xH900mm
• Compliance : CE, ISO
• Warranty : One-year limited warranty with lifetime support

• However, toxic or explosive gases are not recommended for use with this hybrid muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
