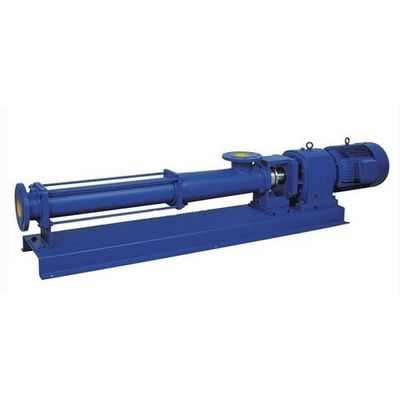

Amerigo - Progressive Cavity Pump
A Progressive Cavity Pump is a type of a positive displacement pump which has a rotor rotating within a housing called a stator. The rotor is always metallic and the stator is made up of a rubber type of material. It looks somewhat like a screw thread – the fluid is between the cavities and the rotary motion of the rotor forces the fluid through from one end to the other.
Progressing Cavity pumps are used when a product needs to be handled gently and are used in all sectors of industries to convey almost all types of media continuously, smoothly, with low pulsation and dosing in proportion to speed. They are used for dosing applications where accuracy is required (multi stage pumps) their range covers from the smallest dosing pumps with flow rates of a few ml to high-performance pumps that pump up to 1000 m³/h. One of the main advantages of a progressive cavity pump is that it is easy to regulate the flow of product simply by regulating the speed of the pump.
- Maximum Capacity : 50 M3/Hr
- Maximum Temperature Up to : 150 Deg C
- Maximum Pressure : 24 Kg/cm2
- Viscosity : Up to 100,000 cst
- Solids Handling Capacity : up to 7-10%
- Maximum Solid Size up to: 25mm
- Product Description:
- Capacity: 100M3/HR, Pressure – 24 Bar, Temperature – 1500C , Viscosity – 1,00,000 CST
- Ceramic slurry and other Abrasive and Corrosive Slurries, Massecuite, Effluents, Mineral Oils, Maize Starch Slurry, Viscose, Paints, vegetables Oil & Sludge etc.
Cast Iron Contraction With Various Metal of rotating parts like Alloly Steel, Tool Steel, SS 304 and SS 316 material of construction. Other Various Option of super Alloy Like Alloy 20, Hastelloy B, Titanium are available for highly corrosive applications. Shaft sealing ensured by soft gland Packing/mechanical seal. Torsion free metal banded stator and double sealed universal joints as pin& bush Joint or special designs like cardon joints as per customer requirement for longer service life and improved efficiency results in trouble free performance of the pump.
