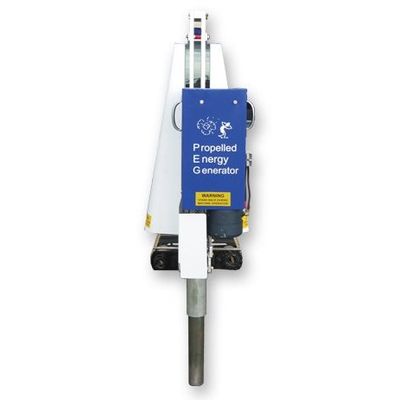

RT Clark - Model PEG - 40Kg -Propelled Energy Generator
Propelled Energy Generators (PEGs) are light weight, highly portable seismic energy sources designed for a multitude of applications within the fields of geology, geophysics, civil engineering, and more. PEG systems utilize simple and effective elastomer band technology to propel the hammer to a high velocity.
- High Energy Output
- Superior Portability
- Efficient and Reliable
- Repeatable Energy
- Inexpensive to Buy
- Economical to Operate
The Propelled Energy Generator is comprised of two easily-manageable components for fast and efficient installation and de-installation in the field. The PEG’s lightweight, streamlined design also affords its users economy in shipping. In fact, one of the most attractive features of a Propelled Energy Generator is its affordability with a price even the tightest budget can accommodate.
The PEG-40Kg is designed to easily mount on trucks, SUVs, trailers, and All Terrain Vehicles. An optional Universal Hitch Mount, which conveniently doubles as a storage stand, is available for most trucks and trailers not equipped with a U.S. standard 2″ square receiver hitch.
- Hammer Mass Weight: 36 kg (80 lbs)
- Hammer Drop Height: 36 – 43 cm (14 – 17 in)
- Cycle Time: 3 to 5 Seconds
- Motor Engine Size: 12V Electric
- Power Supply Requirements: 12V Battery
- Impact Frequency Band: 10 – 250 Hz
- Impact Plate: 46 x 46 x 2.5 cm (18 x 18 x 1 in)
- Hammer Assembly Weight: 46 kg (100 lbs)
- Motor Assembly Weight: 43 kg (95 lbs)
- Weight Assembled with Shields: 100 kg (221 lbs)
