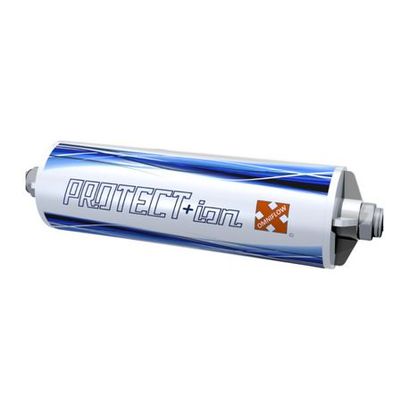

PROTECT+ion Omniflow - Ion Exchange Filter
Our ion exchange filter is available in four sizes. It can be installed in multiple directions to cover a wide range of applications and meet all customers’ requirements. This is why our product is called PROTECT+ion Omniflow.
Our patented internal lattice structure directs flow to fully utilize the high-quality resin. The internal matrix structure keeps the resin beads from tightly packing and therefore lowering the pressure loss in operation. Our internal structure also stops resin demixing caused by vibration in fuel cell systems.
Our patented internal lattice structure directs flow, prevents pressure loss, and stops demixing.
The PROTECT+ion Omniflow is easily adapted and replaced. Its simple, cylindrical shape can be clamped to almost anything in an automobile, fuel cell, or industrial application. Whatever your system looks like, an easy connection option is available. The patented structure inside works in any orientation. No matter how the PROTECT+ion Omniflow is mounted, connected, or oriented its unique design will not leak resin into the surrounding system and the environment, allowing carefree operation.
Our advanced design maximizes the ion exchange efficiency and minimizes pressure drop.
The resin in our PROTECT+ion Omniflow has been vigorously tested and developed for maximum performance and durability. The PROTECT+ion has optimal thermal and mechanical stability for deionization in automotive, industrial, and fuel cell systems. Even in demanding scenarios, the filter is durable and intuitive to operate.
The PROTECT+ion Omniflow offers higher exchange capacity at lower cost, size, and weight.
Our PROTECT+ion Omniflow is available in four sizes: i6-2, i6-3, i10-2 and i10-3. The i6-2 is a 2” OD x 6” long filter and the i10-3 is a 3” OD by 10” long. Each size has a different capacity of how many ions it can absorb from the fluid. With the PROTECT+ion Omniflow series, we cover most of the applications, from small ones to big ones
Our ion exchange filter comes in four sizes to cover a wide range of applications and meet all customers’ requirements.
Housing Material
- Polypropylene
Resin Type
- Styrene-DVB Gel Resin
Exchange Capacity
- i6-2: 200 meq
- i10-2: 330 meq
- i6-3: 490 meq
- i10-3: 820 meq
Threading
- i6-2 & i10-2: 3/8" NPTF
- i6-3 & i10-3: 1/2" NPTF
- Connectors available upon request
Max Temperature
- 90 °C (194 °F)
Sizes
- i6-2: 2" O.D x 6 in. Length
- i10-2: 2" O.D x 10 in. Length
- i6-3: 3" O.D x 6 in. Length
- i10-3: 3" O.D x 10 in. Length
- Max Temperature 90 °C (194 °F)
- Conductivity Depends on specific application
- Service Life Depends on specific application
An ion exchange filter that propels you forward with clean energy in the following uses:
- Fuel Cell Backup Powerplants
- Fuel Cell Material Handling
- Fuel Cell Transportation
