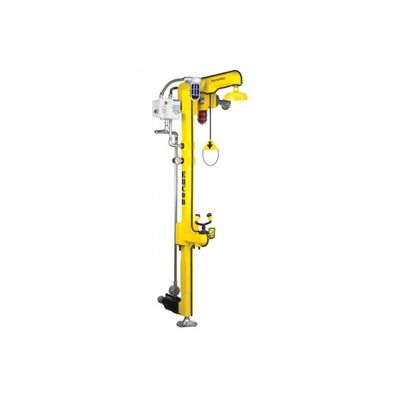

Encon Therma-Flow - Model TF35B4777200 -Protected Showers & Eyewashes
Freeze Protected and Tempered Water Showers prevent freezing by maintaining and internal temperature above 50°. Internal water temperatures are maintained via self-limiting heating cable on Therma-Flow® showers and radian heater on heating cable in the Therma-Flow Plus® product group.
Most popular related searches
freeze protection valve
flow switch
closed cell insulation
flow regulation
flow regulator
eyewash
water piping
water pipe
underground water
utility water
Encon® offers a customized model selection (SEE REFERENCE TAB for Configurator Tools), allowing you to design a product that meets the specific needs of your facility - incorporating your local, corporate safety, electrical, mechanical and maintenance requirements.
- Self-limiting heat-trace cable; 5 watts/foot
- Closed-cell foam insulation to maximize heat retention
- 120 or 240 VAC compatible models
- High-visibility yellow, green or orange UV-inhibited, ABS plastic covers resist chemical and environmental deterioration
- Completely removable covers with elastomer seals for field maintenance
- Neoprene-coated aluminum trim strips secure covers
- 20 and 30 gpm shower flow regulation for maximum utilization of water and piping schemes
- High-limit thermostat protects against over temperature water
- Remote and local alarm capability with horn, bell or Pulse Tone and flashing light selection
- Flow switch or proximity MAP® switch alarm actuator options available
- Insulated, heat-traced extension option to protect underground water supply piping
- CSA approved with UL and FM components for NEMA 4; Class 1, Div. 2, Gp. B, C and D areas; and Class 2, Div. 2, Gp. F and G electrically classified areas
- Class 1, Div. 1, Gp. D available on some models upon request
- Corrosion-resistant hardware
- 120 or 240 VAC compatible models
- 4 single- bolt hold down brackets
- Adjustable double swinging doors
- Door weather seals
- Fire-retardant fiberglass reinforced plastic and urethane foam walls
- Yellow chemical-resistant UV inhibited Gelcote®* outer finish
- ISO standard graphics Lexan®* windows
- Galvanized or electric traced and insulated shower option
- 20 gpm shower, 3.5 gpm eyewash, 3.0 gpm drench hose with flow regulation for maximum utilization of water and piping schemes
- NEMA 4; NEMA 4X; Class 1, Div. 2, Gp. B, C and D; and Class 2, Div. 2, Gp. F and G electrical classifications
- Class 1, Div. 1, Gp. D option available on some models
- Fail safe alarms
- Remote and local alarm capability with horn, bell, Pulse Tone and flashing light available
- Flow switch or MAP® switch alarm actuator options available
- Installation and maintenance manual included
- Shipped on fork lift pallet
- Our models offer protection to below -40°F
Custom design your own system to meet the specific needs of your facilty`s specifications.
- Freeze Protection: Freeze Protection Valve, Heat Tracing
- Scald Protection: Closed Cell Foam Insulation, High Limit Thermostat, In-Line Scald Protection Valve
- Certification Classes: CSA, FM, UL
- High Visibility Cover Options: Green, Orange, Yellow
- Optional Electrical Class: Class 1, Div 2, Gp B,C,& D, Class 2, Div 2, Gp F and G, NEMA 4
- Options: Alarm Lighting, Area Lighting, Audible Bell, Audible Horn, Audible Pulse Tone, Flow Switch, Heat Trace Indicator, In-Line Water Thermometer
- Voltage Options: 120V, 240V
