Proteus -Â Model BBF -Biofiltration System
State of the art biofiltration for all your wastewater applications. Defying Limitations to Overcome Critical Constraints in Wastewater Treatment.
Most popular related searches
biological treatment
wastewater treatment system
effluent filter
tertiary treatment
water filter
air diffuser
packed bed
wastewater treatment
backwash water filter
biofilter system
- Exceptional BOD & SS Removal Rates
- Space Savings Design Boasts Smallest Treatment Footprint
- Minimize CAPEX by Retrofitting Existing Civil Structures
- No Need for Additional Chemicals
- No Disruptions from Clogged Rags & Debris
Proteus Plus
The upgraded Proteus Plus configuration adds a layer of aerated biofilm for high-rate biological treatment which does not require chemicals or redirection of biomass.
Patented EPP Media
The expanded polypropylene (EPP) media design provides the ideal surface area to build biofilm for high solids loading rates.
Pre-engineered Solutions
Easy construction option for management of primary wet weather flows, capacity increase, or as a tertiary bolt-on for nutrient control.

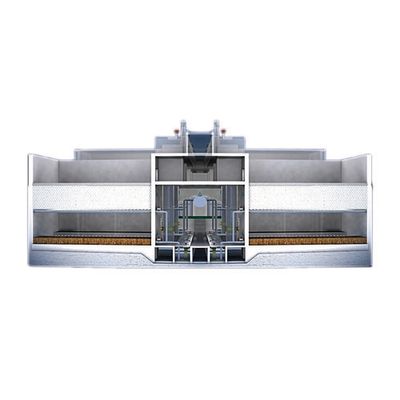

Physical & Biological Treatments Using a Single Up-flow Reactor
- Influent wastewater enters through a header box and flows by gravity into the bottom of the Proteus filter
- Influent flows upwards through a packed bed of Proteus media beads, where particulates are trapped, and through a strainer box that retains the media
- Oxic/anoxic conditions can be designed based on the location of air diffusers relative to the floating media
- A layer of filtered effluent is stored in the top of the reactor as backwash water. The filter media is backwashed by gravity (no pumping) using only its own effluent.
- Filtered water leaves the Proteus filter with reduced TSS and BOD and continues to the next stage in the treatment process
