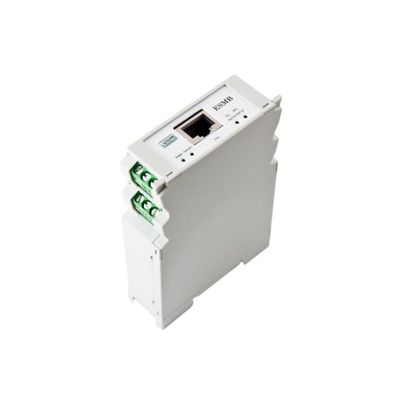

NAVITUS DLMS - Model ESMB 3.2 -Protocol Converter
FromUAB NAVITUS LT
ESMB 3.2 is a modification of ESMB 3.1 controller which is used for conversion of meter protocol DLMS/COSEM to Modbus. Controller is used for data transmission of smart meters, which use DLMS/COSEM communication protocol, to SCADA or building management systems. Same as ESMB 3.1, ESMB 3.2 can have one or two communication interfaces (20 mA current loop and/or RS485) and transmit data using RS485 or Ethernet interface.
Most popular related searches
- Power supply, AC90 - 264 V, 50 Hz
- Power supply, DC110 - 270 V
- Consumed power< 5 VA
- Protection class2
- Galvanic isolation: Power supply <-> Communication interfaces4000 V
- 20 mA current loop communication interface for meter connectionUp to 5 meters, data transmission speed 300 : 19200 baud
- RS485 communication interface for meter connectionUp to 32 meters, data transmission speed 300 : 19200 baud
- RS232 communication interface for data transmission/configurationData transmission speed 2400 : 19200 baud
- RS485 communication interface for data transmissionData transmission speed 300 : 19200 baud
- Ethernet communication interface for data transmission10/100 Base-T, RJ45 connector
- Operating temperature-20 : +50 ⁰C
- Relative humidity5 : 95% non condensing
- Dimensions110x75x25 mm
