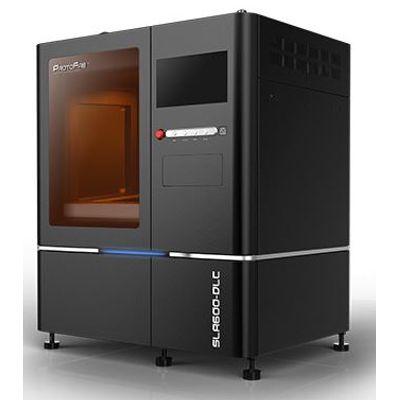

ProtoFab Allrounder - Model SLA 600A DLC -Stereolithography 3D Printer

Industrial-grade Building Capacity
Our international best-seller has a maximum build size of 600 x 600 x 400 mm. The SLA600 can satisfy most industrial design and prototyping needs with the lowest per unit cost.

True-to-CAD Accuracy and Surface Finish
Equipped with fast and intuitive printer interface software, and a galvanometer optical system by ScanLab Germany, the SLA600 displays top scanning speeds and enhances production efficiency significantly. Surface roughness as low as 0.05 μm makes post-processing simple and efficient.

Wide Choice of Materials
A selection of over 10 different custom-designed printing materials with unique characteristics for functional prototypes and low-volume manufacturing.

Made-To-Measure Customization
We offer a considerable selection of customizations free of charge. Available upgrades include autofocus, automatic material refilling, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.

• Build Size (xyz)1600 x 600 x 400 mm (23.62 x 23.62 x 15.75 in)
• Printing Speed75-180g/h
• Scanning Speed6.0m/s (Recommended)  10.0m/s (Maximum)
• AccuracyPart Size< 100 mm(3.9 in): ±0.1 mm(±0.004 in)
• Part Size≥ 100 mm(3.9 in):±0.1% x L
• Layer Thickness0.1 mm (0.004 in)
• Laser TypeDiode-pumped solid-state laser Nd:YVO4
• Optical System
• SCANLAB Galvanometer Scanner
• Beam Size: 0.12 - 0.2 mm
• Operating SoftwareSirius Intelligent Printing Control Software / Linux or Windows (Optional)
• CAD InterfaceSTL Format Files
• Machine Size W x D x H1630 x 1280 x 1920 mm (64.17 x 50.39 x 75.59 in)
• Ambient Temperature22-25ºC (71.6-77℉)
• Relative HumidityLess than 40%
• Power Requirements200-240VAC 50/60Hz Single Phase 16A
