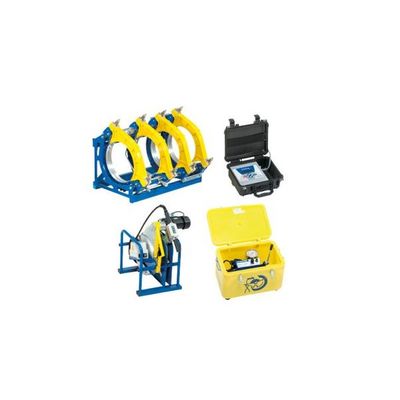

Protofuse - Model 250 -Semi-Automatic Butt-Fusion Machine
PROTOFUSE 250 is a hydraulically operated semi-automatic butt-fusion machine for polyethylene pipes of sizes from 63 to 250 mm. The data logger makes the execution of manual operations easier and safer during the fusion process. It guides the operator following the international standards, detects errors, and collects traceability and welding data. This data is then made available through a USB memory key.
Most popular related searches
- Fusion diameters: 63-75-90-110-125-140-160-180-200-225-250 mm
- Input voltage: 230V / 50-60 Hz
- Total power consumption: 3.65 kW
- Frame weight: 39 kg
- Cylinder section area: 5.88 cm2
- Hydraulic unit power consumption: 0.75 kW
- Hydraulic unit weight: 30 kg
- Hydraulic unit max. pressure: 160 bar
- Heating mirror power consumption: 2.1 kW
- Heating mirror weight: 6.5 kg
- Facer power consumption: 0.8 kW
- Facer weight: 13 kg
- Holder weight: 11.5 kg
- Total weight: 105 kg
- Overall dimensions: 1200x800x850 mm
- PROTOFUSE 250 is supplied with:
- steel frame
- electrical facer
- heating mirror
- electronic thermostat
- hydraulic power pack
- facer and heating mirror holder
- multi-socket
- data logger
- reducer inserts
- Available options:
- stub end holder
- pipe support rollers
- wheel kit
- wooden box
Recommended generator: Plutonelec 60
Available options:
- stub end holder
- pipe support rollers
- wheel kit
- wooden box
Recommended generator: Plutonelec 60
