ProVent - Model PKG Series -Economical Vertical Cartridge Collector
The economical Intercept PKG Series vertical cartridge dust collector can capture and remove most industrial process dust. A packaged dust collector with pre-selected integral fan assemblies commonly used in a variety of applications. A unique CAM-LOC cartridge locking mechanism securely seals the cartridge header plate to the tube sheet to prevent dust bypass. The PKG Series offers standard performance specifications that are suitable for many applications.
The CAM-LOC filter seal creates an air tight fit against the tube sheet removing the possibility of air leaking around the filter. The release and seal arms make changing filters simple and quick.

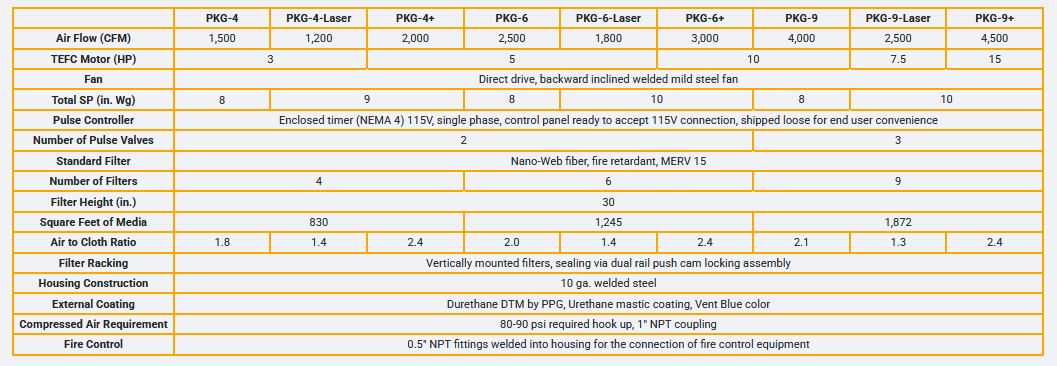

Ranging from 1,500 CFM to 4,500 CFM the Intercept PKG gives you the performance you need for small to medium applications. NANO Web MERV 15 filters provide high efficiency and quick release of particulate when pulsed by the timed pulse controller.
Compressed air is forced down into the clean side of the filters blowing built-up dust off the outside of the filters and down into the collection bin. Reverse pulse filter cleaning will extend the life of your filters significantly and create reliable airflow through the ductwork.
We have been manufacturing and improving designs of our dust collectors for over 50 years. A dust collector with the ProVent name will surpass expectations in performance and build quality.
The Intercept™ PV-Series vertical cartridge dust collector can be upgraded with a rotary air lock at the bottom of the hopper, enhancing dust management and containment. This rotary air lock upgrade provides a tight seal, ensuring continuous and controlled dust discharge from the hopper into a collection bin while preventing air leakage.
The upgraded rotary air lock operates with precision-engineered rotating vanes that maintain a consistent seal, which keeps dust contained and supports stable air pressure within the system.
This upgrade is particularly valuable for high-volume dust applications, as it enables efficient, hands-free disposal while reducing the risk of dust escaping into the work environment. By minimizing air leakage and dust spillage, the upgraded rotary air lock ensures a cleaner, more efficient dust collection process tailored to demanding industrial needs.
