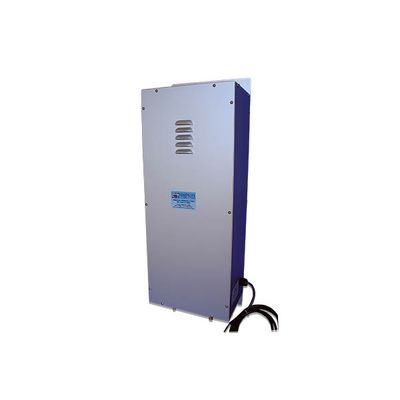

Simpson - Model OG20-S-OEM -PSA Oxygen Concentrator
OG20-S Oxygen Concentrator with 10 LPM output flow. Unit uses PSA process and doesn’t include compressor. This unit does not include an air compressor. Please refer to the OG-20 for this style concentrator.
Most popular related searches
oxygen concentrator
corona discharge ozone generator
water treatment oxygen
corona discharge ozone
PSA oxygen concentrator
ozone generator
ozone generation
corona discharge
water treatment
ozonation
Available in 120v or 220v. Used to concentrate oxygen as an air pretreatment system prior to a Corona Discharge ozone generator. For standalone applications controls are mounted on the OG20-S rather than the ozone generator.
- Concentration of O2 to over 93% +/- 3%
- Polished aluminum finish with vented front panel
- Wall mountable
- Energy - 50 w
- Amp draw @120v/60hz - 0.5A
- Power @ 60/50 hz - 120-240v
- Flow Rate - 10 lpm
- Concentration of O2 - Over 93% +/- 3%
- Air Requirement - 4.5 CFM @ 40 PSI
- CSA Approval - Optional
- Weight - 10 kgs OR 22 lbs
- Size (h x w x d)-76cm x 31cm x 18cm OR (30"x12"x7")
