Simpson Environmental Corporation
Simpson - Model OG60-S-OEM -PSA Oxygen Concentrator

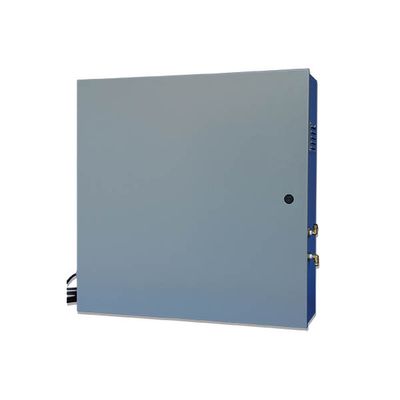

OG60-S Oxygen Concentrator with 30 LPM output flow. Unit uses PSA process and doesn’t include compressor. This unit does not include an oxygen compressor and is installed in a Nema 1 grey enclosure with hinged door.
Most popular related searches
oxygen concentrator
corona discharge ozone generator
water treatment oxygen
corona discharge ozone
PSA oxygen concentrator
ozone generator
ozone generation
corona discharge
water treatment
ozonation
Available in 120v or 220v. Used to concentrate oxygen as an air pretreatment system prior to a Corona Discharge ozone generator. For standalone applications controls are mounted on the OG60-S rather than the ozone generator.
- Nema 1 Enclosure with vented side panel
- Front hinged door for easy maintenance
- Concentration of O2 to over 93% +/- 3%
- Energy - 100 w
- Amp draw @120v/60hz - 0.5A
- Power @ 60/50 hz - 120-240v
- Flow Rate - 30 lpm
- Concentration of O2 - Over 93% +/- 3%
- Air Requirement - 15 CFM @ 40 PSI
- CSA Approval - Optional
- Size (w d h) - 76.0 x 76.0 x 22cm OR (30"x30"x8.5")
- Weight - 56.7 kg OR 125 lbs
