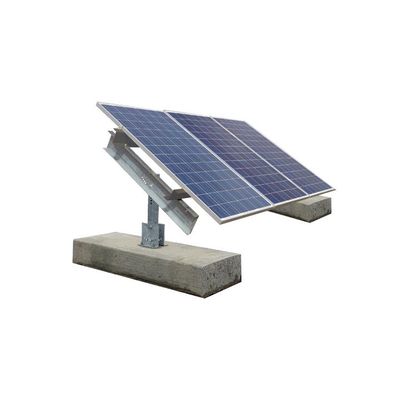

PSG - 3 Panel Ballasted Ground Mount
The Delta is a non-penetrating ballasted ground mount system for any size solar installation. Benefits include several adjustment features for varying terrain as well as UL 467 integrated grounding mid clamps. The Delta is an ideal solution for landfills, brownfields, rocky soils, and impenetrable ground conditions. Patriot can install over 1 MW per week with a six man crew.
Most popular related searches
375 Series
- Part SLR-MTBAL175-3HW
- 3 panels per section (60/72 Cell Panels)
Add-On Section Assembly
- SLR-MTBAL175-3HWADD
- Modular with quick assembly
- Starting section assembly includes 2 pre-cast ballasted posts, 2 trusses, 2 rails and hardware
- Add-on section assembly includes: 1 pre-cast ballasted posts, 1 trusses, 2 rails and hardware
- Mounting structure is 100% hot-dipped galvanized
- Ideal for large commercial and utility-scale installations
- Rugged, weather-resistant designs
- 20-year guarantee against mechanical failure (breakage) of the frame construction
- No Ground Penetration
