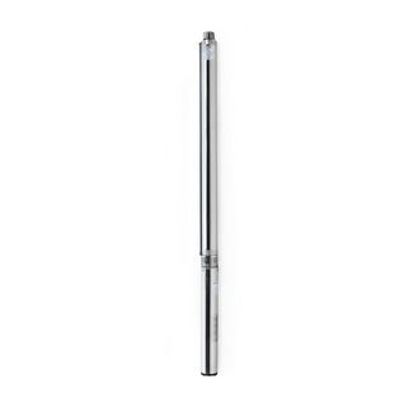

PST - Model 3 -Submersible Pump
S3M: Pressed Brass coupling flange 3" according NEMA rules. Outer shell of SS AISI 304. Stud-bolt, washers and nues for pump coupling of SS AISI 304. Shaft extension of SS Duplex.
Most popular related searches
- Power:
- single-phase 0.37 Kw - 1,1 Kw;
- three-phase 0.37 Kw - 1,1 Kw;
- Voltage:
- single-phase 230V ± 10% 50Hz or 60Hz;
- three-phase 230 V or 400v ± 10% 50Hz or 60Hz;
- Axial load: 1500N
- Protection IP 68, Insulation class F
- Flat cable 4x1,0 mm² dimensions 15,5x5,5 mm.
- Length: 1,4 mt (0,37 Kw - 0,55 Kw)
- 1,8 mt (0,75 Kw - 1,1 Kw)
Limits of Use
- Max. starting operations per hour: 30
- Max. ambient temperature 35° C, water pH 6,5 - 8,0
- Min. cooling speed: 8 cm/sec.
- Max. depth of immersion:200 mt.
- Vertical or horizontal installation
- Material:
- Body Aisi 304-316L
- Interior Sand resistant Technopolimer
- Delivery: 10 Lt/min - 100 Lt/min
- Head4: 6 mt - 141 mt
- Sand: up to 800 gr/m3
- Orizonthal use: max. 18 impeller
- pH: 4 - 9
- Suction: NEMA 3"
