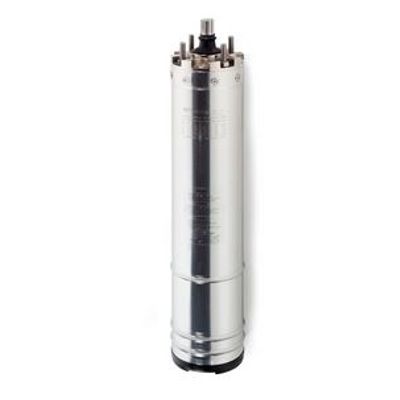

PST - Model 6 -Electric Submersible Motor
S6M: Electric submersible motor cooled through dielectric and non-toxic oil. NEMA coupling flanges 6’’ cast iron with anti-corrosive treatment. Outer shell of SS AISI 304. Stud-bolt, washers and nuts for pump coupling of SS AISI 304. Shaft extension of SS Duplex.
Most popular related searches
submersible motor
submersible electric motor
corrosion treatment
submersible pump
submersible pump motor
submersible electric pump
coupled pump
electric pump
Limits of use
- Max. starting operations per hour: 20
- Max. ambient temperature 30° C, water pH 6,5 - 8,0
- Min. cooling speed: 0,2 m/sec.
- Rotation: clockwise/counter-clockwise
- Max. depth of immersion: 350 mt.
- Tension: 230V - 400V - 460V (± 10%)
- Frequency: 50Hz - 60Hz
- Starting: Y / Δ
- Axial load: 10000 N - 20000 N
- Protection IP 68, Insulation Class F
- Cable (flat):
- 4x4 mm2 L = 3,5 m (4 Kw - 18,5 Kw)
- 4x8 mm2 L = 3,5 m (22 Kw - 37 Kw)
