Premier Tech Water and Environment
PTA Dosing Control Units
Premier Tech Aqua ’s Dosing Control Units are designed to regulate the flow of wastewater to the main treatment unit.Most popular related searches
decentralized wastewater treatment system
sand filter system
dosing system
remote alarm system
decentralized wastewater treatment
wastewater treatment system
wastewater treatment
wastewater flow
decentralized wastewater
flow reduction

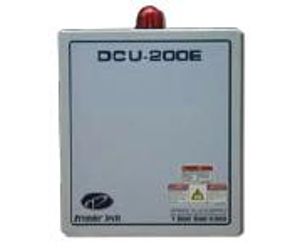

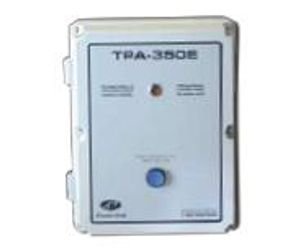

Premier Tech Aqua (PTA) offers a complete product line of Onsite and Decentralized Wastewater Treatment products and services. We bring to market well designed, lightweight, robust and durable peripherals to help you make the most of any septic installation, and more. Our Simplex unit TPA-350 and Duplex unit DCU-200 are ideal for onsite treatment systems requiring timed dosing with respectively one or two single phase pumps. The display allows easy adjustments of the pumping and rest times, and gives you a complete picture of the system utilization.
Advantages
- User friendly display
- Higher treatment levels through reduction of peak flows
- Entire UL and CSA approved control panels

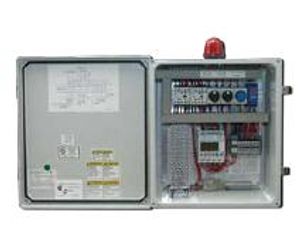

The Simplex TPA-350 and Duplex DCU-200 Timed Dosing and Control Units allow peak flow reduction and control of the influent to the treatment system as per the installation needs. They consist primarily of a control panel allowing variable on/off time settings and controlled dosing of wastewater flows to the treatment system.
Common applications include sand filter systems, pressure distribution systems, mound systems, Ecoflo or any others requiring a timed dose.
- When the on/off float reaches a certain level, the pump starts up and operates according to a programmed pumping cycle
- Pumping continues with on/off cycles until the on/off float lowers to its original position
- If pumping station inflow is greater than the design flow, an override float switch will continuously activate the pump to evacuate the excess liquid.
- Alarm system:
- Adjustable audio alarm (NSF compliant)
- Visual alarm (red beacon)
- Dry contact to activate remote alarm system
- Enclosures:
- Indoor version: NEMA 1
- Outdoor version: NEMA 4X
- Disconnect switch (outdoor version only)
- Heating device (outdoor version only)
- Separated Power and Control circuits
- Silence / test button
- 120/240 VAC, 12 FLA
- Cycle: Pump run time, Pump run delay
- Timers: Pump run, Override, Alarm
- Counters: Normal cycle, Override, Alarm
- Alarms: Override, High water level, Float error (fault)
