PTA Pumping Stations

SHARE
Premier Tech Aqua  provides three pump station models that, when necessary, pump wastewater to an Ecoflo Biofilter or to any other type of disposal field installation.
Most popular related searches
pump station
septic tank
septic tank effluent
effluent pumping
effluent pump
water intake
ventilation duct
polyethylene tank
tertiary treatment
PVC pipe
  • Pre-assembled and ready to install
  • Light, structurally sound and long-lasting
  • Easy and safe access to components inside the pumping station
PTE’s Pumping Station PSA-240 is engineered to lift wastewater to the Ecoflo Biofilter or any other type of septic instal - lation. Another model, the PSA-240L, is especially designed to handle treated effluent from the Ecoflo Biofilter STB-500/650 with Submersible Collecting Bottom. The PSA-240H model is engineered to fit with low pressure distribution system for drainfield.

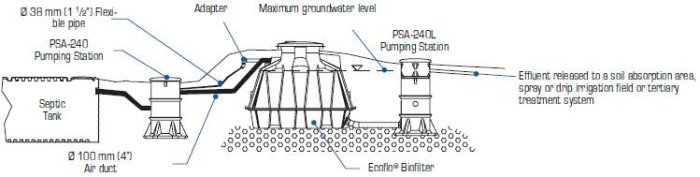

Installed downstream from the septic tank, the PSA-240 and PSA-240H PTE Pumping Stations send septic tank effluent to the treatment system in controlled doses (adjus ted using on/off floats). The PSA-240L model is always installed downstream from the Ecoflo Biofilter with Submersible Collec - ting Bottom, as close as possible to the Bio filter. Treated effluent enters the tank, where it can be pumped to either an absorption field or a tertiary treatment unit.
Tank available without electromechanical components.
  • Polyethylene tank construction
  • Audio/visual alarm system
  • 0.4 Hp effluent pump
  • Weight: 50 to 56 kg (110 to 123 lbs) depending on model

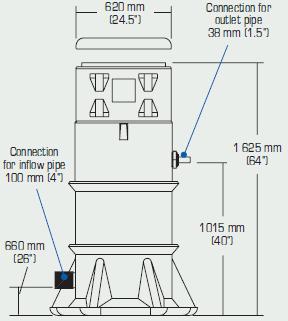

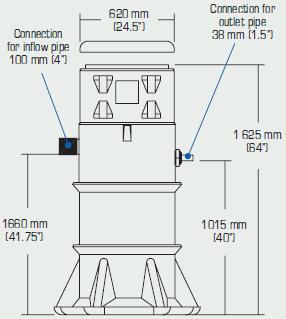

  • Inlets (water intake and ventilating duct): fits 4` (100 mm) DR35 PVC pipes or SCH-40
  • Outlet: fits flexible pipes with 1.5` (38 mm) diameter for the PSA-240 and PSA-240L and fits 2` (50 mm) for the
    PSA-240H
  • The PSA-240 or PSA-240H is connected downstream from the septic tank.
  • The PSA-240L is connected to the outlet of the Ecoflo Biofilter with Submersible Collecting Bottom.
  • The PSA-240, PSA-240L or PSA-240H on/off float must be adjusted according to the required dose.
  • The ball valve must be adjusted to set pumping time of the PSA-240, PSA-240L and PSA-240H. This setting should be veri fied before the start-up.
  • The junction box is installed outside the tank and off the ground (on a pole) so it is never submerged and allows easy access.
