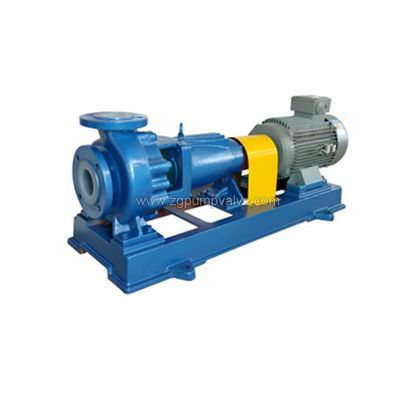

Zigong - Model IHF -PTFE/PFA/PVDF Lined Centrifugal Pump
The IHF Fluoroplastic Plastic lining pump is designed according to international standards. The pumping housing is made of metal outing lined with fluoroplastics/PTFE/PFA/F46/PVDF/Teflon/FEP, and the impeller and pump cover are pressed into form with metal inserts wrapped by fluroplastic/PTFE/PFA/F46, and the shaft seal is realized by mechanically sealing the advanced outer-carrying corrugated pipe.
The stationary seal ring is made of 99.9% alumina ceramics, while the rotating seal ring is made of PTFE filling materials ( or other materials in light of customer`s special working condition). They are corrosion- and wear-resistant and can handle corrosive acids, aggressive liquids including hydrochloric acid(HCl), sulfuric acid(H2SO4), chromic acid, phosphoric acid, caustic soda (sodium hydroxide,NaOH), nitric acid...
- Flow rate: Q=2.5～480（m³/h）
- Total head: H=3.8～80 (m)
- Speed: n=1450rpm/2900rpm
- Inlet Diameter: 50-200mm
- Outlet Diameter: 32-150mm
- Temperature: T=-0～95℃
- Max. Working Pressure: 1.6MPa
- Designed in accordance with international standards, all flow parts are lined with fluorine plastic, and the load-bearing part of the pump is made of metal. Equipped with external corrugated mechanical seal, easy installation and convenient maintenance.
- Chlor-alkali industry: lye, electrolyte, refined, salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid;
- Non-ferrous metal smelting: conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
- Iron and steel industry:electroplating, pickling, etc;
- Acid production:hydrochloric acid nitric acid, sulfuric acid, phosphoric acid, acetic acid,etc;
- Energy industry:methanol, dimethyl ether, etc;
- Fermentation industry:intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
- Environmental protection:various sorts of medicaments, acid-and alkali-containing wastwater, etc.
