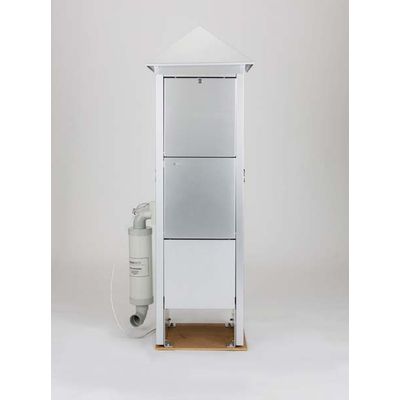

American Ecotech - Model HiVol 3000 -PUF High Volume Puf Sampler
The HiVol 3000 PUF Sampler provides a flexible platform for sampling organic compounds and monitoring basic meteorological parameters. The PUF utilises poly-urethane foam (PUF) to collect particulate matter and store it in a sterile environment for later analysis.
The HiVol 3000 PUF unit is a reliable, durable and proven sampler using volumetric flow control to maintain consistent flow and collect a truly representative sample of particulate matter.
Optional attachments allow the sampler to measure wind speed and direction which can then be used to trigger sector selectable sampling (e.g. fence-line monitoring).
The HiVol 3000 PUF incorporates advanced programming functions and electronic volumetric flow control to maintain a consistent flow and collect a truly representative sample.
- Volumetric flow control automatically corrected to standard reference temperature.
- Industrial brushless motor (100 000 hours continuous field operation).
- Weather-proof marine quality anodised aluminium cabinet.
- Automatic supply voltage monitoring and shut-down facility reduces damage to instrument.
- Wind direction and speed used to activate/deactivate sampler.
- External trigger (0-5VDC) can be used for activating sampling program.
- RS232 output for data collection and remote communication.
- Filter blocked and instrument error alarms.
- Total control of instrument remotely from PC.
- Simple programming of sampling periods, including daily and weekly programs, with in built‘1-in-X day’ sampling capability.
- Operation: Microprocessor controlled (internal data logging)
- Pump/Motor: Side channel blower driven by an induction motor (brushless)
- Flow controller: Variable frequency drive
- Volumetric flow range: Nominal 10-20 m3/hr
- Vacuum capability: 175 mBar max
- Flow accuracy: Better than +/- 0.2 m3/hr
- Flow repeatability: +/- 5 % of reading
- Construction: Anodised aluminium and Stainless steel fasteners
- Filter size: 100mm diameter filter
- Replaceable PUF glass cartridge element
- Dimensions: 380mm (W) x 380mm (D) x 1200mm (H) plus inlet
- Weight: 45kg plus inlet weight
- Operating voltage: 200-240V + 10% 50/60 Hz (optional 115V 60Hz)
- Power Consumption: 1500 VA Max (depending on filter loading & flow rate)
- Temp measur. range: 0-50°C
- Barometric pressure: 600-900 mmHg +/- 4mmHg
Communications/Data logging
- No. of readings: 150 (averaging period is user selectable, for example 75 hours of 30min averages
- External inputs:
- 1 x wind direction sensor input (10k potentiometer)
- 1 x wind speed sensor input (contact closure) or,
- 1 x spare contact closure input (eg. Tipping bucket rain gauge)
- Output: RS232C
- Calibration plate
- Field calibration transport case
- Manometer
- WS/WD sensors
- RH Sensor
- Muffler
