Schleuniger PullTester - Model 326 -Pull Testing Machine
The PullTester 326 uses pull forces of up to 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf) for destructive and nondestructive tests of crimp or welded connections. The triple-range capability gives the PullTester 326 great flexibility to handle a variety of testing and accuracy over a wide range of wires. The standard measuring ranges, which are individually calibrated, are 200 N, 1,000 N, and 2,000 N (45 lbf., 225 lbf., 450 lbf.); however, other variations are available by special order. With four selectable test modes, it can perform destructive and nondestructive tests (hold to a specified force).The PullTester 326 is equipped with a speed-controlled motor, ensuring consistent pull rates for repeatable and accurate data. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 14-position terminal holder accommodates a wide variety of terminals to suit most applications. Upon request, more terminal holders are available.

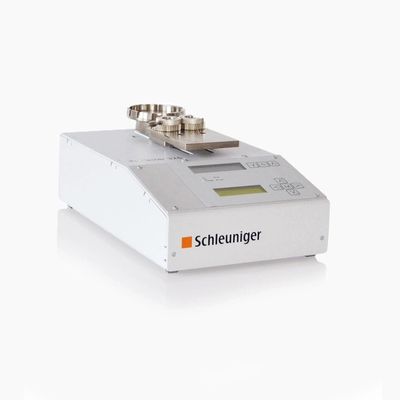

PullTester 326
Metric
- Analysis software: WinCrimp
- Pull-out speed, quantity: 4
- Pull-out speed 4: High speed
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: Up to 48 jobs with 50 measurements (2,400 measurements)
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: RS 232 connection directly to printer or via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks Pull + Hold: Pull to a specified force and hold for up to 252 min. (nondestructive test) Pull + Return: Pull to a specified force and reduce (non-destructive test) Pull + Hold + Break: To a specified force and hold for up to 252 min. and pull until wire breaks
- Stroke max.: 43 mm
- Pull-out speed: 25 mm/min
- Pull-out speed 3: 100 mm/min
- Pull-out speed 2: 50 mm/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 326 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 410 mm
- Dimensions/length: 250 mm
- Dimensions/width: 130 mm
- Weight: 11 kg
- Temperature operation: 0 - 50 °C
- Protection class: IP 20
- Measurement range / force sensor: 2000 N
- Measurement range N min.: 0 lbf
- Measurement range N max.: 44 / 220 / 440 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: Upper: LCD 6-digit for force readings Lower: LCD 4-line for programming and operation
- Data interface: RS 232
- Unit of measurement: Newton (N), kiloponds (Kp), pound force (lbf.)
Imperial
- Analysis software: WinCrimp
- Pull-out speed, quantity: 4
- Pull-out speed 4: High speed
- Additional equipment: various holders
- Power source: Electric
- Memory capacity: Up to 48 jobs with 50 measurements (2,400 measurements)
- Measuring tolerance: ± 0.5% (full scale)
- Printing capability: RS 232 connection directly to printer or via PC using WinCrimp Software
- Motor: 24 VDC
- Pulling modes: Pull + Break: Normal pull test until wire breaks Pull + Hold: Pull to a specified force and hold for up to 252 min. (nondestructive test) Pull + Return: Pull to a specified force and reduce (non-destructive test) Pull + Hold + Break: To a specified force and hold for up to 252 min. and pull until wire breaks
- Stroke max.: 1.69 in
- Pull-out speed: 0.98 in/min
- Pull-out speed 3: 3.94 in/min
- Pull-out speed 2: 1.97 in/min
- Network connection: In combination with crimp force monitor and crimp-height measurement device via WinCrimp software.
- CE conformity: The PullTester 326 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Dimensions/height: 16 in
- Dimensions/length: 10 in
- Dimensions/width: 5 in
- Weight: 24 lb
- Temperature operation: 32 - 122 °F
- Protection class: IP 20
- Measurement range / force sensor: 440 lbf
- Measurement range N min.: 0 lbf
- Measurement range N max.: 44 / 220 / 440 other variations available by special order
- Software/evaluation and communication module: Wincrimp software for further analysis and statistics (optional)
- Screen: Upper: LCD 6-digit for force readings Lower: LCD 4-line for programming and operation
- Data interface: RS 232
- Unit of measurement: Newton (N), kiloponds (Kp), pound force (lbf.)
