Pulsar - Model 3400 -Ultrasound Algae Remediation Appliances
Designed for smaller applications with lower range for smaller bodies of water and enclosed applications - but with the same high precision targeting of algae and biofilm. The Pulsar 3400 and 4400 appliances use next-generation advancements in ultrasonic technology, fabrication, and IoT technology to advance the fight against algae. Both feature 360° coverage models, with the Pulsar 3400 covering less distance, making it ideal for applications such as clarifiers, small lakes and ponds, and golf courses. The Pulsar 4400 covers a more significant range and is ideally suited for larger lakes, drinking water treatment reservoirs, and wastewater treatment lagoons. In addition, the Pulsar 3400 and Pulsar 4400 introduce onboard IoT and telemetry support, enabling units to transit data from the water to the Cloud, including the unit’s location and operational status.
Sustainable Algae Management - Sam
WaterIQ Technologies™ is the leading supplier of solutions that prevent and combat algae using advanced ultrasonic technology, restoring water to its natural state quickly and sustainably without the use of harmful chemicals.

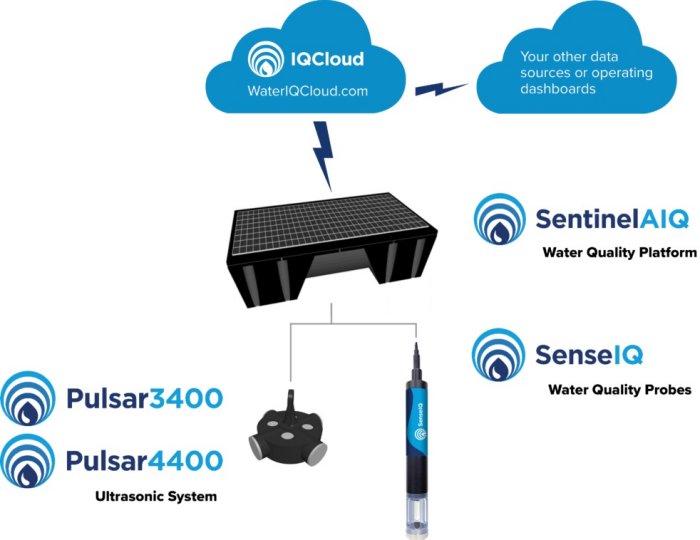

The Pulsar represents the next-generation in ultrasonic defense systems designed for prevention, performance, and reliability. Our systems operate 24/7, provide high-reliability telemetry and cloud connectivity enables real-time monitoring of operational performance and water quality.
- Relieve your expensive operations & management team from having to clean up biofilm
- Prevent biofilm before it becomes a problem
- Lower/reduce your compliance costs of downstream treatment
- Deploys in clarifiers, settling tanks and lagoon
- Prevent algae before it blooms
- Kill aglae when it blooms
- Protect your water
- Prevent and combat blooms - chemical free
- Protect and enhance the value of your water assets
- Reduce labor and chemical costs
- Meet compliance on water quality requirements
- Sustainable for organic compliance
- Eliminate need for toxic chemical sprays on your crops
- Improve runtime and performance of pumps, drippers and systems
- Automate smart growing practices
- Kill algae not fish - do not impact the ecosystem
- Reduces golden, blue-green (cyanobacteria), and green algaes - linked to overall nutrient loading (beneficial bacteria is a power augmentor)
- Also directly attacks Karenia brevis or red tide
Attribute: Pulsar 3400
- Number of Frequencies: 4400

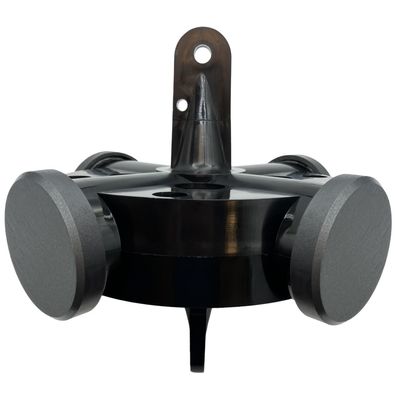

- Number of Piezo Transducers/head: 4 heads @ 90 degrees
- Algae targets (All units address biofilm): Biofilm and lower range applications
- Green Algae Target Range: 80 Meters Radial (10 acres)
- Blue Green Algae Target Range: 200M Radial (60 acres)
- Biofilm Target Range: 45M
- Power Options: 120V/240V, 24V DC, Solar
- Head Options: Single Unit or Dual Units to the same power supply
- Anti Fouling – non mechanical: Y
- Clarifier Option for integrated Cable: Y
- Custom Cable lengths: Y
- Standard Monitoring/Telemetry including: on/off, restart, reboot, sync and measurement of operational performance and water quality metrics at set intervals: Y
- Water Quality Monitoring – MiniSenseIQ – Chlorophyll A, Cyanobacteria, Temp – no calibration with wiper: N
- Water Quality Monitoring – SenseIQ8 – Basic + OPR, Ph, Do, Turbidity: N
- Power Consumption: 30 W total
- Connectors: IP69
- IQCloud Integration and Access: Y

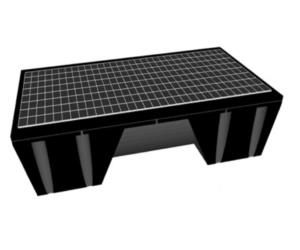

A-Frame Land Based Solar
Ideal Power for smaller applications where local power is accessible.

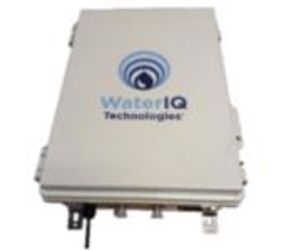

Shore based power supply for applications where AC power is available.
Used in large applications and where AC power is not available and cables are prohibitive.

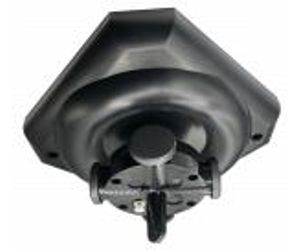

The standard solution for land based systems - cable linked from the shore to the float.

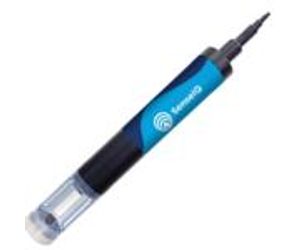

Available in a small format MiniSense and eight sensor SenselQ8 models. We are happy to discuss other options.
