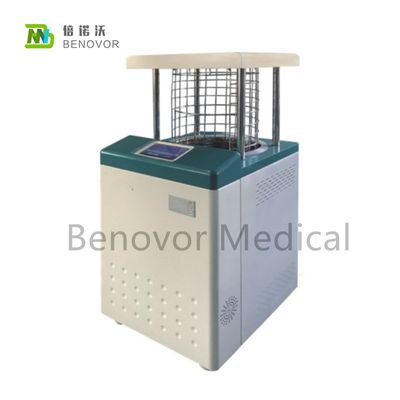

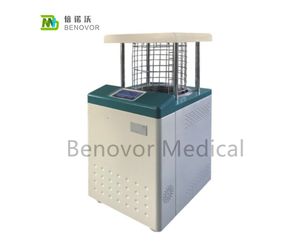

Benovor - Pulse Vacuum Vertical Laboratory Autoclave
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media, etc.
FEATURE:
1. 7" capacitive touch screen, fully automatically controlled, easy to operate on.
2. Elevating type door, which is more convenient to place and fetch the articles from the autoclave.
3. The whole procedure from water inlet, pulse vacuum, heat, sterilizing,drainage, exhausting to
vacuum drying, which are all automatically by one-key operation.
4. Pulse vacuum, the limit is -0.080MPa, which ensure the sterilizing more completely.
5. Separted steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing articles from been oxidized. There are several programs loaded in the autoclaves for different requirement of different articles.
6. With PT-TT testing port, easy to run the testing.
7. Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20 µm, which ensure the air is sterile, prevent the contamination.
8. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
SPECIFICATIONS:
Model: HY-SJ60V/HY-SJ80V/HY-SJ100V/HY-SJ120V
Capacity: 60L/80L/100L/120L
Chamber size: 396*490mm/396*650mm/480*560mm/480*660mm
Working pressure: 0.22MPa
Working temperature: 134℃
Max .working pressure: 0.23MPa
Overall dimension(mm）: 686x556x913mm/686x556x1035mm/840x600x970mm/840x600x1060mm
Power: 3KW/AC220V.50HZ/3.6KW/AC220V.50HZ
G.W/N.W: 210kg/180kg 230kg/200kg 270kg/218kg 252kg/227kg
