American Wheatley Flex - Pump Connectors

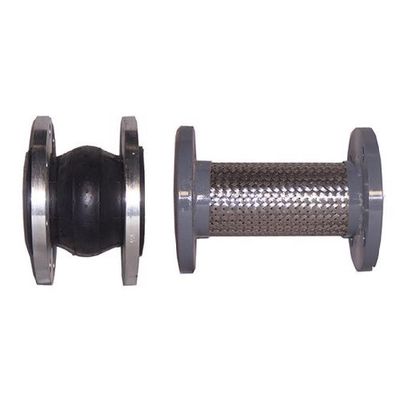

American Wheatley Flex Pump Connectors come in three categories: Rubber Flex Connector, Stainless Steel Connector, and Elastomeric Connector.
Most popular related searches
pump connector
stainless steel pump
pipe system
stainless steel tube
electrolysis
stainless steel flange
flanged pump
- Our Rubber Flex Connector has three variants: single, double, and double union. The Rubber Flex Connector reduces vibration and noise in the piping system and controls thermal movement, pulsation, misalignment, and electrolysis.
- Our Stainless Steel corrugated annular metal is surrounded with a woven wire braid of high tensile stainless steel. Its high pressure and temperature capabilities absorb pump vibration and noise, reducing piping stress.
Standard Features: Rubber Flex
- Reduces vibration and noise in the piping system
- Controls thermal movement, pulsation, misalignment, and electrolysis
- Standard construction of chemical-resistant elastomers such as neoprene, nitrile, and EPDM
- Floating flanges drilled or tapped to mate with 150# companion flanges
- Stainless steel pump connectors
Standard Features: Stainless Steel
- Stainless steel corrugated inner tube and outer shield of wire braid stainless steel – 300 Series
- Steel fixed flanges ASA 150 lb.
- Maximum working temperature 850°F
- A pressure safety factor of 4:1
