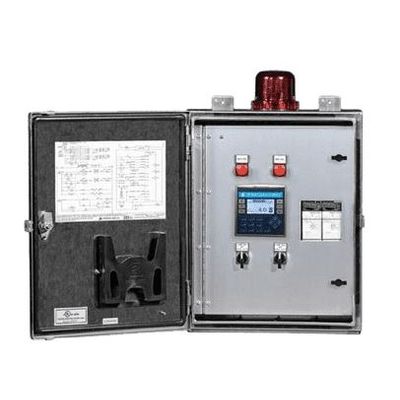

Primex - Model 331-SV -Pump Control Panel
The 331-SV pump control panel is designed to be simple, yet versatile for all standard duplex applications. One panel covers three phase, three voltages for an unbelievable value. It operates with floats, a level transducer or both! “Fit and Click” the appropriate overload modules into the starter and you are off and running. The 331-SV control panel features the Station View controller which is simple to operate with an intuitive menu and clear graphics display.
Most popular related searches
pump control panel
pump controller
stainless steel enclosure
submersible level transducer
level transducer
level sensor
level switch
- Padlockable wall mount NEMA 4X stainless steel enclosure
- Single-point power connection
- IEC HP rated motor starter with adjustable “Fit and Click” overload modules
- 10HP max @ 208V, 240V; 20HP max @ 480V
- Class 10 ambient compensated overload relay
- Pump short circuit disconnect/overload reset accessible through inner door
- Tri-voltage step-down control transformer
- Separate alarm/control fuses
- Override circuit to operate lag pump if lead float fails
- Station View™ controller
- Pump run lights
- Hand-Off-Auto switches
- Optional Level Sensor Kits
- Submersible level transducer with (2) backup floats, 50 ft. cables
- (4) Mechanical floats with cable weights, 50 ft. cables
OVERLOAD MODULES*
- 1033805 1.25 – 5.0 FLA
- 1023500 4.5 – 18.0 FLA
- 1033806 8.0 – 32.0 FLA
*Overload Modules sold separately; each panel requires two modules; select modules based on motor FLA.
