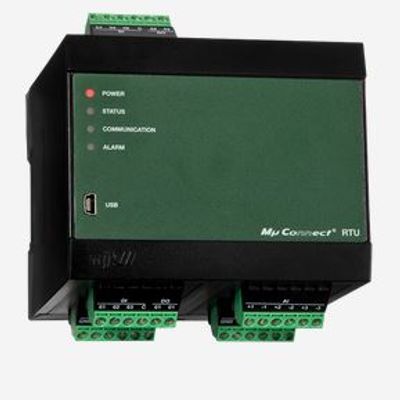

MJK - Model Mµ Connect -Pump Control Unit

Mµ CONNECT IS A COMBINED PUMP CONTROL AND SOFTWARE PROGRAM THAT PROVIDES INTELLIGENT MONITORING AND CONTROL OF PUMPS. Mµ CONNECT IS PRIMARILY DESIGNED FOR PUMP STATIONS AND SMALLER SEWAGE TREATMENT PLANTS, WHERE THE UNIT MEASURES AND LOGS OVERFLOW, MONITORS AND CONTROLS FILTER CLEANING, RAW WATER PUMPS AND BOOSTER PUMPS FOR WATER SUPPLY.

Mµ Connect has built-in Wi-Fi, which offers versatile communications options. On the control unit, you can, among other things, read data directly from the installation`s HMI Display, configure settings with the PC program Connect Link or make minor adjustments via the MJK Connect app for smartphones.

UP TO 32 DIGITAL AND 16 ANALOG SIGNALS

With Mµ Connect you get more options for input and control of pumps.

EASY INSTALLATION

Mµ Connect is modular and developed for mounting on a DIN rail.

ENERGY OPTIMIZED PUMP OPERATION

Advanced functions ensure you a power-saving pump operation.

SCADA COMMUNICATION

Communicates directly to SCADA systems via GSM/GPRS (optional). Remote control is possible via RTU.

INTELLIGENT DATA LOGGING

The control unit has a built-in microprocessor for advanced calculations based on received data. Everything is securely logged in the memory.

CONNECTION TO EXTERNAL DEVICES

iNET Modbus communication ensures easy connection to external devices and instruments that measures, for example, flow, level, solids, etc

• Power supply: 11-30 V DC/24 V AC ± 20% (Min.15-30 VDC to charge the backup battery)
• Power Consumption: 8-40 VA, Depending on construction
• Memory: 32MB flash memory, 10x36000 logs depending on chosen protocol
• External Communication: Modbus® RTU-mode or COMLI®
