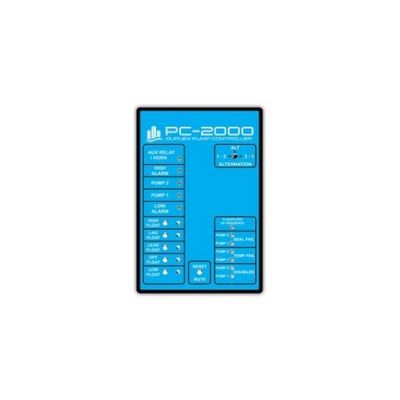

PRIMEX - Model PC-2000 -Pump Controller

Duplex pump applications

Power input: fused and transient protected

Float inputs (5):  5VDC @ 26mA max.

Float  and sensor inputs transient protected

Pump run indicator lights

Pump alternation switch

Pump seal fail inputs with indicator lights

Pump over temperature inputs with automatic disable and indicator lights

Switch selectable for latch to requires manual reset

Output for flashing alarm light

Relay output for alarm horn with mute reset for common alarm

High level alarm indicator light

Low level alarm indicator light

"Push-to-Test" float switches with indicator lights

Float "Out-of-Order" detection with indicator lights

"Fail-to-Start" test (switch selectable enable/disable)

Pump disable inputs (can be used for SCADA, etc.)

Optional serial port for communication Modbus

Built-in delay for pump starts and pump stops

Automatically demote pump with seal fail condition to lag pump

Removable "quick connect" terminal strips for easy service
