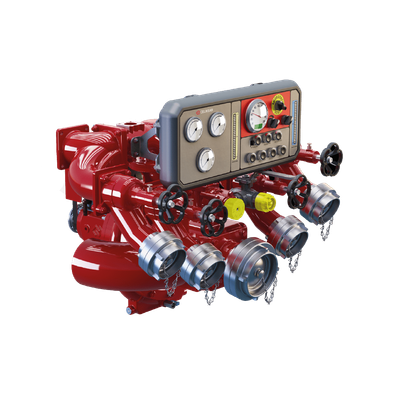

CELIKSAN - Model CN 10-100 -Pump For Fire Truck
CN 10-100 is the patented pioneer series by Çeliksan, a company renowned for innovation in the realm of fire pumps. This series has cemented its position as one of the cornerstones of the global market by delivering unmatched performance. It excels in providing reliable services within the segment of fire pumps that have undergone extensive research and development. This series stands out with its modern design and capability to meet the highest levels of competition. By choosing CN 10-100, clients receive a technically advanced solution that exhibits superior reliability and efficiency, ensuring peace of mind in critical situations.
It is the patented pioneer series of Çeliksan company. This series, which is one of the world's market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines.
- Low pressure pump
- Compatible with a wide range of modifications
- Maintenance-free mechanical seal and vacuum pump
- Suitable Mounting design for vehicles all over the world
- High performance automatic suction system
- Low pressure with single stage aluminum fan
- Low sound level
- Hot water tank for use in cold climates
- Thermal drain valve 72°C
- 1000 SERIES : CN 10-100 (RPM Increaser) : CN 10-100 (ML)
- Low Pressure Flow Rate : 1000 l/min (264 gpm) : 1000 l/min (264 gpm)
- High Pressure Flow Rate : - : -
- Normal Pressure : 10 bar (145 psi) : 10 bar (145 psi)
- Normal Pump Speed : 3000 rev/min (rpm) : 3000 rev/min (rpm)
- Maximum Pump Speed : 3200 rev/min (rpm) : 3200 rev/min (rpm)
- Minimum Idle Speed : 700 rev/min (rpm) : 700 rev/min (rpm)
- Minimum Suction Speed : 2500 rev/min (rpm) : 2500 rev/min (rpm)
- Maximum Suction Speed : 3200 rev/min (rpm) : 3200 rev/min (rpm)
- Maximum Pressure : 17 bar (246 psi) : 17 bar (246 psi)
- Weight : 89.4 kg (191 lbs) : 71.1 kg (156.1 lbs)
- Suction Speed, 7.5 m depth : 30 seconds : 30 seconds
- Operating Temperature : -15 °C (5 °F) / +55 °C (131 °F) : -15 °C (5 °F) / +55 °C (131 °F)
- Dimensions (L x W x H) (mm/inch) : 668 x 745 x 530 (26.3 x 29.3 x 20.8) : 668 x 825 x 530 (26.3 x 32.5 x 20.8)
- Thermal Drain Valve : 72 °C (161 °F) : 72 °C (161 °F)
- Reducer Ratio Options : 1/2,04 - 1/2,55 - 1/2,95 : 1/1
