S2N - Pump Station Monitoring System

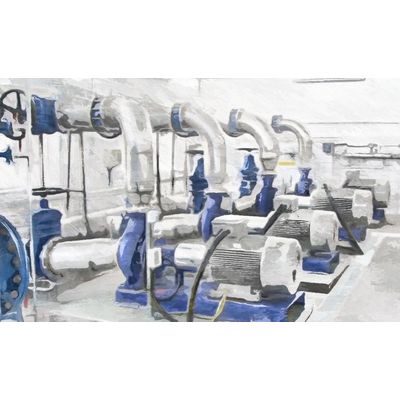

The S2N Pumping Station Monitoring System is capable of continuously monitoring the operation of a waterworks’ pumping station. It measures the pumps’ electrical performance, monitors their operating time and power consumption, measures water pressure, records water meter data, and gives warning to flooding. It successfully provides measurement and data collection capabilities without human intervention, even in areas that are not adequately equipped with access and communication infrastructure.
Wireless LoRaWAN or NBIoT technology is used to transmit measurement data to a cloud server, where the user can reach them with normal internet access. The data is displayed in a tailored way according to the desires of the user, even on a mobile device. Access to the data is performed in a secure, password protected manner. Staff members with the needed authorization can even track the measurement results on a mobile phone, allowing alerts to be handled quickly, before crises occurs.
By processing and analyzing large amounts of data regarding the condition and operation of the equipment in real time, maintenance processes can be optimized and more efficient use of resources can be achieved. Due to continuous monitoring, operating and maintenance costs are reduced, and power consumption is optimized. Traditional preventive maintenance can be replaced by proactive, predictive maintenance. The useful life of the equipment will increase, anomaly detection becomes more accurate, major failures and costly shutdowns can be prevented. The probability of future failures can be predicted and even the the cost of repairs can be reduced.
If threshold values, defined jointly with the user, are reached or exceeded, the system sends a warning signal / alarm, as well as advice based on trend analysis; e.g. alarm can already be sent in case of excessive water consumption trends, not just when the limit values are reached.
All individual elements of the complete monitoring system can be coordinated, the system is able to send warning and alarm signals egen on the basis on relative values.
The system automatically generates daily / weekly / monthly reports on the measurement data, which can be then exported in xls or csv format according to the user`s needs. Reports allow automatic support of daily water abstraction data as well.
The S2N Pumping Station Monitoring System can be successfully used to monitor both new and existing machine houses and their associated systems.
- Continuous monitoring of waterworks’ pump stations
- Measurement of pump performance, operating time, power consumption
- Pump station monitoring (recording of water pressure, water volume meter data)
- Monitor housing status (closed / open) and flooding
- Pump's continuous electrical power
- Pump's runtime
- Pump's power consumption
- Pump station's water pressure
- Water meter data in the pump station
- Facility status (open / closed)
- Flooding
- Data acquisition unit: S2N SGU + antenna
- 4 configurable analog inputs
- 8 Modbus inputs
- Pressure measurement: 0 - 20 bar
- Water meter connection: pulse transmitter, 4-20 mA, Modbus
- Flood detection
- Opening detection
- Electrical power measurement (3 phases 200W - 70kW) - Modbus
- Measurement cycle time: default 15 minutes
- Data transfer, communication cycle: default 15 minutes (recommended)
- Data communication: LoRa WAN or NB IoT
- Alarm: for event-driven functions
- Power supply: 7-36 V 500 mA
- Protection: IP66
- Temperature range: -5 to +40° C
