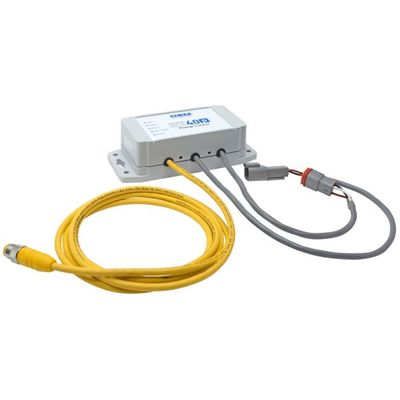

OEM Data Delivery - Model BT40p -Pump Tracker
BT Pump Tracker is a fuel & consumable dispensing capture device that works in conjunction with a flow meter tracking dispensed fluids. Installed on fuel trucks, pick-up trucks with 175gal. tanks, fuel skids, and stationary tanks. Hoses that range from 3⁄4” to 4.0”, and flow rates up to 250gal/minute, (250gal/minute is the max flow rate with the 4.0” flow meter). Dispensing transaction data is collected by a mobile device, (phone, or tablet), which sends the data up to the cloud. Asset/Equipment identification of the equipment receiving dispensed fluids is achieved by a BT (Bluetooth®) Tracker device, or manual entry.
OEM Data Delivery’s BT (Bluetooth®) Trackers are simple devices that can go on any, and all equipment, attachments, & tools. When used in combination with a phone, tablet, or BT Receiver, can generate crucial location, and utilization information.
The BT40p (pump) Tracker can be easily installed on any fuel/consumable tank where fluid inventory is needed.
- Model No. : BT40p (pump) Tracker
- Data Captured : Fuel/Fluid dispensed, Asset ID, CMH (cumulative machine hours), and Location
- Power Source : Host System
- Power Interface : 8 to 32 VDC
- Operating Temperature : -40° to +70° C
- Sealing : IP65
- Bluetooth® Distance : 100 Yards – line of sight
- Bluetooth® Frequency : 2.402 to 2.480 GHZ
- Regulatory : FCC (US), IC (Canada),CE (Europe)
- Installation Time : Flow Meter Dependent
- Dimensions : 4.5” x 2.52” x 1.75”
