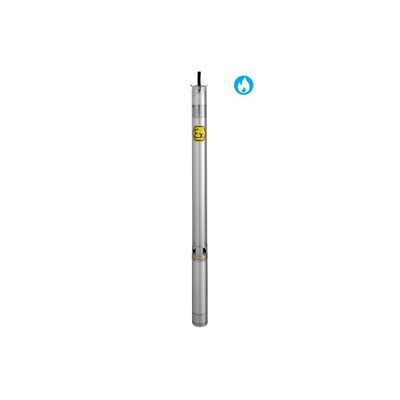

OFT - Model Alpha EX – Beta EX -Pumping of Liquids and Extraction
Pumping of liquids and extraction of leachate in landfill, drainage of contaminated fluids and groundwater. The ATEX explosion proof pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres and hazardous areas according to the marking explained in the technical details.
Most popular related searches
electric submersible pump
explosion proof pump
submersible pump
submersible electric pump
asynchronous motor
hazardous area
explosive atmosphere
landfill drainage
electric pump
check valve
- Multistage centrifugal electric submersible pumps for 4” wells characterized by a floating impellers system that allows the pumping of leachate and charged liquid with small solid bodies.
- External pump case, delivery port, suction port, shaft and other components in stainless steel.
- Impellers and diffusers in special technopolymer with ceramic inserts at wear point.
- The check valve made of stainless steel is installed inside the delivery head.
- Temperature of pumped liquid: max +40 °C.
- Available in AISI 316 version.
- 2 poles asynchronous motor, 50 Hz, 2850 rpm.
- Class F insulation.
- IP68 protection.
- Working voltage: single-phase 230 V, three-phase 400 V.
