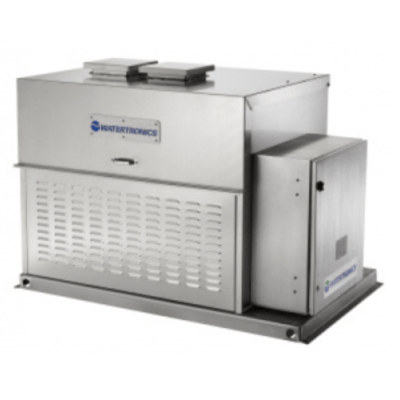

Watertronics - Model Watermax 7000 -Pumping System for Landscape

SHARE

Ideally suited for large commercial turf applications, the WaterMax 7000 Pumping Systems provide all the technology and performance of a larger system in a compact, self-contained package.

Most popular related searches
pump system
silent check valve
pressure regulator
check valve
submersible turbine pump
isolation valve
VFD control
variable frequency drive controller
butterfly valve
pressure transducer
  • Application: Booster, Suction Lift, Flooded Intake
  • Flow: Up to 800 GPM
  • Pressure: Up to 140 PSI
  • Voltage: 240/1 Phase, 208/3 Phase, 240/3 Phase, 480/3 Phase
  • Advanced Watertronics PLC-based control software with color touchscreen
  • Microprocessor-based software controls to maintain constant pressure at variable flow
  • UL 508A listed dead front control panel with service rated disconnect Horizontal premium efficient inverter duty rated motor
  • Alarms:
    • Low pressure shutdown
    • High pressure shutdown
    • VFD fault shutdown
    • High pump temperature shutdown
    • Motor overload shutdown
    • Phase loss (3 phase only)
  • Starting Options:
    • Pressure drop
    • Flow based
    • 24 VAC remote start relay
  • Lightning surge protection
  • VFD pressure regulation with surge free station starting/stopping
  • Stainless steel pressure transducer
  • Flow sensor providing flowrate and totalized system flow
  • Durable cast iron pump featuring bronze impeller and mechanical seal
  • Silent check valve per pump
  • Individual pump and station discharge isolation valves
  • Full flow pump bypass piping included on booster and flooded suction models
  • Priming port and automatic priming assembly for suction lift models
  • Station inlet/discharge flanged terminations
  • Industrial grade polyurethane UV resistant coating on all station piping
  • Epoxy coated painted steel base and enclosure with lockable lid, forced fan air cooling and gas spring assisted lid lift
  • WaterVision remote monitoring – ethernet or cellular versions
  • Additional 24 volt controller start (up to 2 additional)
  • Marine grade aluminum enclosure with stainless steel base
  • Floating HDPE intake suction line assembly with foot valve Intake suction pipe with screen & vacuum pump assembly
  • Electromagnetic flow meter
  • Suction & discharge drop pipes with multiple connection options
  • Across the line (XL) by-pass contactor
  • Temperature controlled enclosure heater
  • Vandal resistant red alarm light
  • Internal sound dampening insulation
  • Back flow preventer
  • Programmable set-point lake level control
  • Electronic Butterfly Valve (EBV) back up pressure regulation in case of VFD failure
  • Submersible turbine pump(s)
  • VFD controlled jockey pump
  • In-line basket or wye strainer
  • Automatic self-cleaning discharge filtration

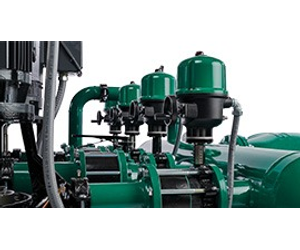

Electronic Butterfly Valve (EBV)
EBV complements VFD controls by pressure regulating each across-the-line pump, eliminating surges, check valve slam, air entrainment and providing 100% backup pressure regulation in the event of a VFD fault.

Watch In Action

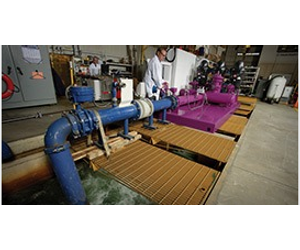

Dynamic Testing
Prior to delivery, eachstation is tested to site specific conditions for full dynamic flow, operation and 7-point vibration performance in our 88,000 gallon factory test pit.

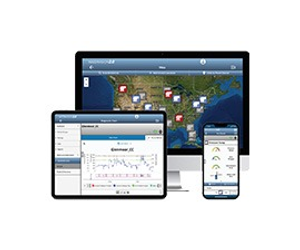

WaterVision 2.0 Remote Telemetry
Stay connected and in control. View, manage, diagnose and make adjustments remotely anytime.
