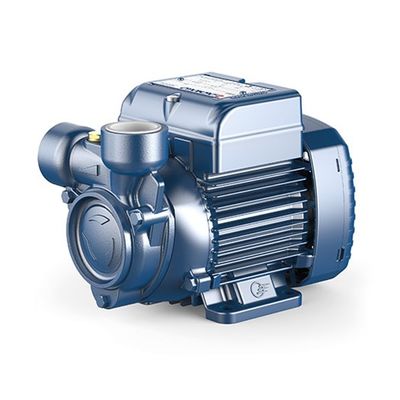

Pedrollo - Model PQ -Pumps with Peripheral Impeller
FromPedrollo S.p.A
The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications. Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Most popular related searches
boiler feed water system
water system pressure
wash water system
washing system
cooling system
boiler feed
water supply
steam boiler feed water
boiler feed system
boiler feed water
- Liquid type: Clean Water
- Uses: domestic, industrial
- Applications: chillers, cooling systems, steam boiler feed, washing systems, water supply systems, pressure systems
- typology: surface
- Family: peripheral
- Flow rate up to 90 l/min (5,4 m³/h)
- Head up to 100 m
- Temperature of the liquid from -10 °C to +90 °C
- Ambient temperature between -10 °C and +40 °C (+50 °C for PQ 60)
- Manometric suction lift up to 8 m
- Max. working pressure:
- 6 bar for PQ 60, PQ 65
- 7 bar for PQ 80
- 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
- Continuous service S1
