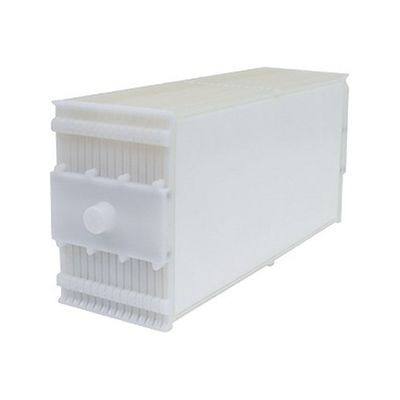

PURE-ENVITECH - Model SBM -Block Type Flat Membrane

• Materials : c-PVC
• Nominal Pore Size : less than 0.3?
• Effective Membrane Area : 15P 4.5?/block
• Average Operating Flux : 0.3~0.6?/?·day
• Operating Temperature range : 2~38?
• Operating Pressure range : 0~0.05MPa
• (maximum : 0~0.08MPa)
• pH : 2~10
• Block Size : W194×L687×H297

EXTENSIBILITY

• Horizontally & vertically extendable cassette
• Flexible system designed for on-site structures

UNIFORMITY

• The frame acting as header of the treated water and air
• Integrated lower aerator frame
• Periodic cleaning of the aerator during chemical cleaning

TRANSPARENT PARTS APPLICATION

• Application of transparent windows in blocks can check for contamination and damage of block
• Possible replacement of only contaminated blocks
