EnerSys

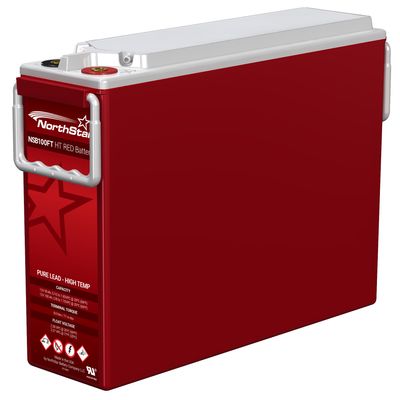

NorthStar - Model NSB 100FT HT RED -Pure Lead - High Temp Battery
FromEnerSys
The NSB HT Red Battery® delivers long life in unreliable grid conditions even at high temperatures.
Most popular related searches
- Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
- Thin plates deliver large surface area high power density and low resistance
- Design life 15+ years at 20°C (68°F)
- Extra long life at high temp operation 40°C (104°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Approved as non-hazardous cargo for ground, sea and air transport DOT 49CFR173.159(d), (i) and (ii)
- Fast recharging
- High cyclic performance
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Shelf life of up to 24 months
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Non-halogenated thermally sealed plastic casing
Terminal: Female M8 x 1.25
Terminal torque: 8.0 Nm (71 in-lbs)
1 hr capacity to 1.70VPC @ 20/25°C (68/77°F): 77 / 81 Ah
3 hr capacity to 1.75VPC @ 20/25°C (68/77°F): 89 / 92 Ah
8 hr capacity to 1.75VPC @ 20/25°C (68/77°F): 98 / 100 Ah
10 hr capacity to 1.80VPC @ 20/25°C (68/77°F): 99 / 100 Ah
Float voltage @ 20/25°C (68/77°F): 2.28 / 2.27 VPC
Impedance (1Khz): 3.9 mΩ @ 25°C (77°F)
Conductance: 1298 S
Short circuit current: 3500 A
Operation temperature range: -40°C to +65°C
Nominal voltage: 12 V
Height: 11.3 in
Width: 4.2 in
Length: 15.6 in
Weight: 72 lbs
