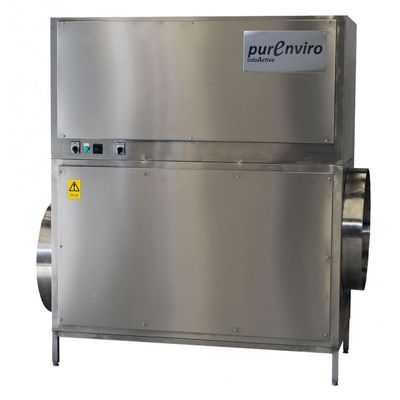

Purenviro - Model odoActive -Removal Odor System

OdoActive cleans the air by very intense UV-radiation. Organic molecules and odor are broken down the same way as the sunlight breaks down similar components. The process is considered as an Advanced Oxidation Process, AOP. By combining radiation of UV-C and V-UV, a number of different radicals are formed. They react with the pollutant and break it down. The process works best in the presence of a catalyst. We always deliver the unit in combination with an adapted filter which works as a catalyst.

When do you choose odoActive?
The technique works best in low to mid range concentrations, where there is a demand for high efficiency and reliability. The removal rate is higher with odoActive, than with a carbon filter, and a more stable function is achieved. In Scandinavia, the technique is the standard solution in cleaning the air from wastewater treatment plants. It is also used in conjunction with frying and food production. In such applications, the facility helps keeping the ventilation system free from fat and dirt. The UV-C radiation also work as a disinfectant, which can be very important in some applications.

Most important advantages with odoActive are:

• High removal rate > 99%
• Low energy consumption
• Easy maintenance
• Low pressure drop
• Tolerates variations in concentration
• Takes up little space
• Cleans compound gases
• Reliable and stable result

OdoActive is mainly used for odor removal and works especially well in situations where odors are composed of many different compounds. In all situations where a carbon filter is used, there is an advantage in upgrading to odoActive and get better cleaning and more stable performance.

Odor from Sewage Pumping Stations
Large sewage pumping stations which are nearby buildings or sensitive areas, often require a high removal rate and stable performance. In those situations odoActive is very suitable.

Odor from Sewage Treatment Plants
The technique is almost regarded as standard in Scandinavia to remove odor from wastewater treatment plants. A very high efficiency is achieved - more than 99%.

Removing Odor from Sludge
Handling sludge produces a lot of odor, and the gas can be very corrosive and cause damage to buildings and equipment. With odoActive the gas is cleaned and the problems with corrosion can be eliminated.

Odor from Frying and Food Production
Odor from frying and food production can be troublesome. In addition there is a risk that fat build up in the ventilation ducts which can be a fire hazard. odoActive removes the odor and helps to keep the ducts clean.
