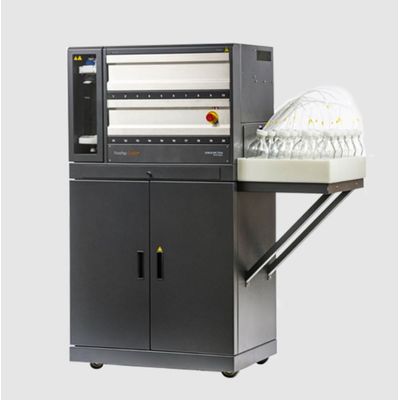

PurePep - Model Sonata+ -Mid-Pilot Scale Peptide Synthesizer
With Real-Time Flow Technology and PurePep® Pathway: Real-Time Flow Technology – accurate and precise fluid transfers with minimal need to calibrate. Easy to use software – efficient, flexible, and intuitive workflow, designed for 21 CFR Part 11 compliance. Single-Shot™ Preactivation – higher purity and no risk of reagent cross-contamination. PurePep Pathway® – dedicated chemically inert pathways for high purity and yield. Variable Mixing Modes – nitrogen bubbling, agitation and recirculation for increased purity.
Real-Time Flow Technology
This is a non-invasive method of continually monitoring the flow rate of fluids within the system. Fluids are delivered precisely and accurately, even for those with different viscosities, with minimal need for calibration.
Intuitive software
The icon-driven software simplifies the chemist’s workflow and accelerates the set-up of peptide synthesis methods. Pre-programmed methods may be used as is, or as a template for customized methods and sequences can be easily imported to avoid errors. It allows to increase productivity and program new syntheses while others are already running. The software is designed for 21 CFR part 11 compliance.
Single-Shot™ Preactivation
Single-Shot™ PreactivationSpecially designed 3-port manifold that enables alternate flow pathways allowing for optimized solvent deliveries to AA bottles, Single-Shot™ Preactivation and improved purity thanks to efficient block valve and delivery lines washing.
PurePep Pathway “Inside”
The design power of the proprietary PurePep Pathway (valve block system) results in zero dead volumes, no cross-contamination, and worry-free performance that lasts for years. Other systems use off-the-shelf valves that leak, cross-contaminate, and quickly fail when exposed to harsh peptide synthesis chemicals. With the trusted PurePep Pathway inside PurePep Sonata+, you have reliable peptide purity every time.
Multiple mixing modes
PurePep Sonata+ has chemically inert, optimized channels allowing high solution transfer rates (> 400 mL/min) of any solvent. All reactions occur in an inert environment to minimize side reactions. Multiple mixing modes include nitrogen bubbling, agitation with adjustable speed and recirculation which can be used alone or combined to maximize reaction efficiency.
Enhanced pumps and other hardware
Enhanced pumps and other hardwareFast and flexible primary solvent pump, chemically resistant with minimal maintenance requirements. Teflon lined Recirculation pump with high solvent resistance and low maintenance. Easy connection to external solvent and waste systems. Great flexibility with GL45-type amino acid bottle setup. Higher purity and no risk of reagent cross-contamination with Single-Shot™ preactivation.
Solvent and reagent positions
Solvent and reagent positionsSeven solvent ports and twenty reagent ports allow easy customization for any synthesis protocol. Real-Time Flow technology allows precise delivery of all solvents and reagents. To minimize disposal costs, two waste ports allow waste streams to be separated. A collection port can be implemented for cleavage products or valuable reagent recovery for maximum versatility.
IQ/OQ
Installation qualification and operation qualification (IQ/OQ) support services verify and document that your instrument is supplied, installed, and operating according to GPT specifications, and may be required for operating under cGMP conditions. GPT-certified field service engineers inspect critical components, ensure that your systems function properly and reproducibly during automated synthesis operations, and provide documentation to help you meet regulatory requirements.
