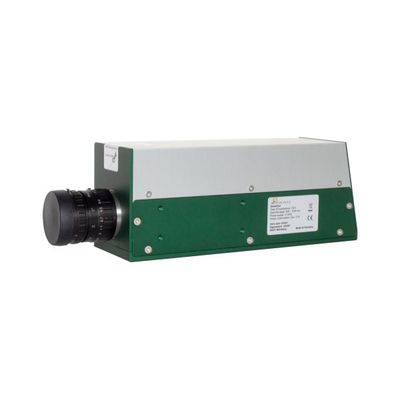

INNO-SPEC - Model GreenEye -Pushbroom VIS / NIR Hyperspectral Camera
The GreenEye is a pushbroom VIS / NIR hyperspectral camera for recording very precise color information. Unlike color cameras, it reproduces spectral information in over 1000 bands. It combines the visible wavelength range with NIR spectra, which allows conclusions about chemical characteristics such as material properties. This enables, for example, the control of color accuracy in textiles, printed products or electronic components while simultaneously collecting surface properties or coating information. The technology combines real-time image data analysis with exceptional spectral and spatial resolution at an unmatched price-performance ratio. Thanks to its compact and lightweight design, the camera is also particularly versatile and flexible in use. Do you have questions or are you interested in this product? Contact us, we will be happy to advise you!
- 400 … 1000 nm wavelength range superior low light sensitivity
- GigE Vision interface
- > 130 fps @ 1312 x 1082 pixels (max. sensor resolution)
- free of periodical calibration of optical path components
- industrial proven rugged design
- Excellent optical imaging performance
- designed without moving mechanical parts
Spectograph
- Spectral range typ. : typ. 400 to 1000 nm
- Dispersion : 0.7 nm/px
- Spectral resolution : <7 nm (with 80 µm slit)
- Spatial resolution rms spot radius : rms spot radius < 35 µm
- Smile : < 90 µm
- Keystone : < 30 µm
- F/# : 2.8
- standard slit width : 80 µm (30, 50 & 100 µm available)
Electronics
- Sensor : CMOS enhanced in VNIR range
- Pixels in full frame : 1312 x 1082 (spatial x spectral)
- Pixel size : 8 µm x 8 µm
- Bit depth : 12 bit
- Frame rate : >130 fps at ≤ 7 ms exposure time
- Data interface /Camera control : GigE Vision
- Power consumption : < 4.8 W
- Power supply : 12 V DC
Operation Conditions
- Temperature (operating) : 0 °C to +50 °C
- Temperature (storage) : -10ºC to +50ºC
Mechanics
- Dimensions l x w x h : 216 mm x67 mm x 83 mm
- Weight : 1.6 kg
- Lens mount : standard C-mount
