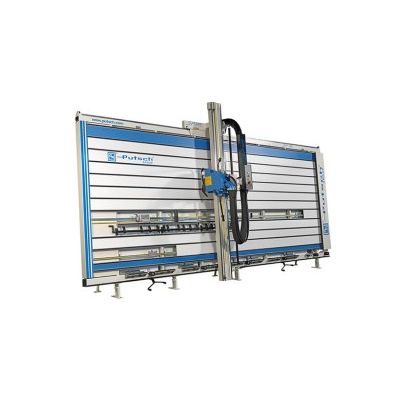

Putsch - Model SVP 133 M/145 M/145 A -Precision Panel Saw

Frame
The sturdy reinforced steel frame is the foundation of every Putsch precision panel saw. The fully welded construction is robust and torque-proof, contributing to quick and simple installation and calibration of the frame.
The meticulously manufactured solid frame provides a reliable base for long, trouble-free production.

The design of the vertical panel saw requires half the floor space of a horizontal panel saw.

The standard base frame is designed for cutting lengths of up to 5300 mm.

Upon request, we can extend the length of the frame up to 15 meters.

Putsch offers an optional wall-mounted design, as well as a modular portable frame for especially tight installation conditions.

Dust collection systems

The main extraction of dust particles during vertical and horizontal cutting is via an integrated dust extraction system within the saw motor. This system is directly connected to an outside dust collector.

Putsch precision panel saws are equipped with secondary integrated extraction systems in the support panel. This significantly reduces fine dust levels in the work space and protects operators from potential health hazards.

TRK – Dust Extraction System

The TRK dust extraction system is integrated into the frame and is included as a standard part of the system. The vacuum channel is located on the right side of the frame and extends over the entire working height. It works continuously during vertical and horizontal cuts and sends dust into the extraction filter. The TRK dust extraction system is EU-tested for wood dust and fulfills all statutory worker protection directives.

ECO Dust Extraction System

To process particularly dustprone materials such as gypsum, we offer an optional ECO dust extraction system. The system consists of several vertical vacuum channels integrated into the grid directly behind the vertical cutting position of the saw blade.

When the carriage is locked into the vertical cutting position, sensor-controlled automatic valves open only the required cutting channel. This way the suction power of the entire system is concentrated on the one cutting position.

The generously dimensioned galvanized pipe system carries the dust/air mixture to the attached independent vacuum unit. When The saw head assembly is positioned horizontally the channel valves close automatically and suction occurs within the saw head and through the TRK vacuum attachment on the right side of the saw.

Automatic shifting grid

Mounted to the saw frame is a shifting grid to support the panels during cutting. This grid is moved by an automatic shifting device that allows the saw blade to evade the grid edges during horizontal cuts and prevent damage to the machine. A sensor on the saw carriage initiates the shifting process by way of a fully-automated electric motor.

Support Surfaces/Support Rollers

On the bottom of the frame there are secure and stable panel support feet. They consist of individually replaceable aluminum supports with phenolic soles. The calibrated alignment of the panel supports to the top of the saw bridge guarantees absolutely true horizontal cuts.

Rubberized lifting rollers enable the positioning of large and difficult panels on the frame. An optional indicator light indicates when the rollers are in motion. Like the aluminum panel support feet, the rollers can be individually replaced as needed.

Angle-cutting device

In order to cut small pieces of material into angular shapes, Putsch offers an angle cutting attachment. This device can be installed on the saw frame with a few simple steps and allows for adjustment to a wide range of cutting angles using an attached scale.

Two flip stops for vertical cuts

Every Putsch precision panel saw is equipped with two sliding flip-stop guides for vertical cuts. They enable quick and precise setting to the desired cut length. Putsch offers optional flip-stops with an integrated digital measurement display to allows settings for vertical cuts that are precise within 1/10 mm.

Retractable middle support shelf

A retractable middle support shelf is integrated into the center of the saw support grid of the saw for short, light materials. This supplemental support fence runs parallel to the bottom beam of the saw frame, extending across almost the entire length of the machine. This offers your personnel an ergonomic working height when handling smaller materials.

Sliding support backer for thin panel materials

An optional sliding support backer is available and can be integrated into the support grid. This accessory makes it easy to position thin pieces on the central support grid.

Low-level Stop

An optional low-level flip-stop is available, which is installed at the bottom of the support grid. This makes it easier to position heavy panels resting on the bottom support feet.

Saw Bridge

The saw bridge serves as a horizontal and vertical guide for the saw carriage. It rides on precision ballbearing rollers along the upper guide rail of the saw that is perfectly parallel to the bottom rail of the saw frame. The mechanical positioner locks the saw bridge securely in the vertical cutting position.

A measuring scale is located on the saw bridge that can be used for horizontal cut measurements. It extends from the bottom of the carriage and the center of the carriage. For recurring horizontal measurements, programmable cams can be individually adjusted for up to four repeat cutting heights.

An optional horizontal repeat strip cutting device can be mounted on the saw bridge. This adjustable device makes it possible to quickly and precisely cut multiple same-size horizontal strips.

Saw Carriage

The saw carriage serves as the guide for the saw motor assembly. Using lightweight aluminum components and precision ballbearings, the carriage slides resistance-free vertically on the guide rail of the saw bridge.

Saw drive unit

The saw motor assembly of the Putsch precision panel saws is located on the saw carriage. The saw head can tilt 90° which makes it possible to cut both vertical and horizontal cuts on the same material. A reliable high-performance motor turns the saw blade.

To prevent chipping and tearing along the edge of laminated materials, an optional scoring attachment with two scratch knives is available. They score the surface for a clean cut on glued edges.

The cut area is protected by a saw blade cover that also serves as a dust seal for increased dust extraction efficiency.

Primary dust extraction is through the saw head assembly. Wood dust, fine particles and chips are directed onto the saw blade and are removed through a flexible plastic tube that is connected to an external dust filter.

Ergonomic handles control the plunging of the saw head along cylinder guides. These guides allow a maximum 60 mm cut depth. A joint on the lower handle allows relaxed and comfortable operation when working overhead.

An optional adjustable depth-stop can be fastened to the saw head for accurate grooving.

Putsch offers a kit to easily convert the saw head for sandwich and aluminum composite panels. The kit contains the grooving cutter for your desired profile, the appropriate protective cover, and a depth-stop to control the insertion depth of the saw head.

Control

The operation of the SVP 145 M series is governed by a control panel mounted to the vacuum tube next to the saw bridge. In the manual version this is how the saw blade motor is turned on and off. This is also where the emergency safety stop is located.

SVP 145 A Automatic Version

The SVP 145 is also available in an automatic version. The difference between the automatic and the manual version is that the shifting frame is operated pneumatically.

When activated, the automatic control moves the saw head to the starting position, plunges the saw blade into the material, guides the carriage horizontally or vertically in two feed speeds, withdraws the saw blade, and if desired repositions the saw bridge back to the starting position. This shortens the entire cutting process for your operating personnel with a single push of a button.

Safety

All Putsch precision panel saws meet or exceed the European Union standards and guidelines for safety. All mechanical and electrical components are subject to testing and certification from independant testing agencies.

SVP 145 / 45° Special Edition

The special edition Putsch SVP 145 has a saw beam that can tilt for vertical and horizontal 45° degree miter cuts on the panel edge. This function is comparable to a circular saw with a tilting blade. This is the only standard panel saw worldwide with a tilting unit for miter cuts.

Equipped features make these machines highly practical and versatile. There are 6 vacuum points that secure material flat to the grid surface during 45° cuts.

Putsch precision panel saws have been used sucessfully for decades for a wide variety of applications. The multitude of available models and component options allow processing of a wide range of panel materials and dimensions.

Wood-Based Panels

The primary application of our precision panel saw is to process wood-based panels such as particle board, MDF and HDF panels as well as OSB and other insulating panels. Other panel materials such as Melamine RC panels, acoustic tiles, countertop panels, and solid wood panels can also be processed trouble free.

Aluminum Composite Materials and Sandwich Panels

Another application of our precision panel saw is the accurate and efficient cutting of Aluminum-composite materials and sandwich panels. These include among others, Alucobond, Alucore, ACM, Dibond and Etalbond, which are used in the construction industry and façade manufacturing.

Plastic Panels

Synthetic panels made of PVC-rigid foam, Makrolon, Polycarbonate, Copolyester, Plexiglas, Acrylic and other materials are regularly processed in such diverse fields as manufacturing and profile-shaping in the furniture industry, lathe construction, and stand and sign makers.
