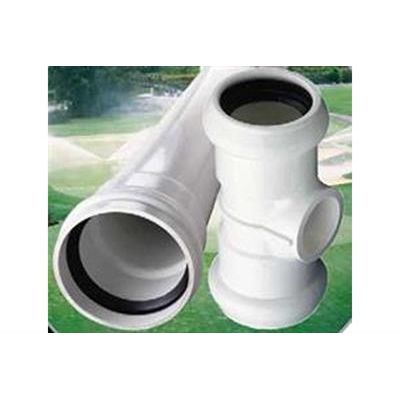

IPEX CycleTough - Model IPSOD -PVC Pipe and Fittings
Cycle Tough is specifically designed for irrigation systems and sewer forcemains.
- High pressure capacity
- Toughness engineered through material reinforcement
- Bottle-tight joints with removable gaskets
IPEX CycleTough systems are made with the same high-impact, engineered compound as our Blue Brute® systems, and are tested to maintain the same high standards. Proven in tough North American climates for over 50 years, IPEX PVC pipe systems have an established track record of performance.
Unlike many competing fittings, CycleTough fittings are made with a longlife compound that extends service by 25%. In addition, CycleTough fittings have been engineered using the latest techniques in Finite Element Analysis (FEA), ensuring problem-free performance for the long haul.
Cycle Tough® PVC Series Pipe (IPSOD)
- 4 - 24" (100 - 600 mm) SDR41 100 psi (690 kPa)
- 3 - 24" (75 - 600 mm) SDR32.5 125 psi (860 kPa)
- 1-1/2 - 24" (40 - 600 mm) SDR26 160 psi (1100 kPa)
- 1-1/2 - 24" (40 - 600 mm) SDR21 200 psi (1380 kPa)
CSA B137.3 certified
- ASTM D2241
- NSF Std. 61 certified
Potable water piping
- Sewer forcemains
- Reclaimed water piping
- Golf course irrigation piping
- Other irrigation piping
- Industrial piping
- Cycle Tough® Molded PVC Fittings (IPSOD)
- 200 psi (1380 kPa)
- 1-1/2 - 8" (40 - 200 mm)
- CSA B137.2 Certified
- 4000 psi HDB
- Potable water systems
- Sewage force mains
- Golf course and other irrigation piping
Cycle Tough® Fabricated PVC Fittings (IPSOD)
- 160 psi (1100 kPa)
- 10 - 24" (250 - 600 mm)
- CSA B137.3 Certified
Potable water piping
- Sewer forcemains
- Reclaimed water piping
- Golf course irrigation piping
- Other irrigation piping
PIPES
IPSOD PVC pipe shall be manufactured from PVC compound with ASTM D1784 cell class 12454B.
PVC pipe will have a minimum hydrostatic design basis (HDB) of 4000 psi and a short-term strength of 6400 psi. Pipe shall be certified to CSA B137.3.
FITTINGS
Injection-moulded PVC fittings shall be made from PVC compound with a minimum HDB of 4000 psi. Fabricated fittings shall be made from sections of pipe certified to CSA B137.3 and fittings shall also be certified to CSA B137.3. All pipes and fittings shall be listed to NSF Standard 61 and shall be colour-coded white.
AWWA C900
TerraBrute is made with pipe conforming to AWWA C900, however once the pipe is grooved on the spigot end its dimensions do not match those published in the C900 standard. Because of this small dimensional difference the pipe, once grooved, does not strictly conform to the C900 standard. It is important to note however, that TerraBrute is subjected to the same testing program as IPEX’s Blue Brute (C900) pipe.
CSA B137.3
TerraBrute is made from stock certified to CSA B137.3.
NQ 3624-250
Factory Mutual and Underwriter’s Laboratories TerraBrute is made from starting stock that is Factory Mutual, ULC and ULI Approved
