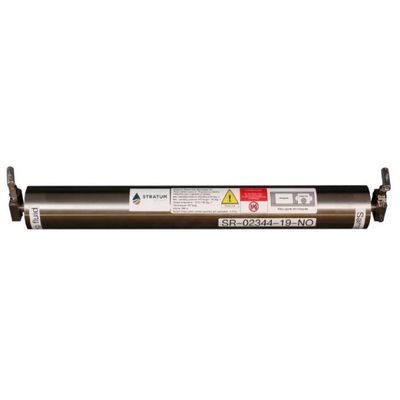

Stratum-Reservoir - Model 995cc, Titanium Grade-5 -PVT Sample Bottle

FromStratum Reservoir

SHARE

Light weight Mercury free piston sample cylinder, TPED/DOT approved for transport.

Most popular related searches

hydrocarbon fluid

material sampling

mercury sampling

fluid separation

Light weight Titanium piston bottle for transport and storage of hydrocarbon fluid and water at elevated pressures and temperature.
Mercury free with low-friction piston separating process fluid from cushion fluid.
Mixing Ball in HC-276.
Large volume 995 cc.
Working pressure of 690 bar (10,000 psi).
TPED approved for transport.

Working Pressure: 200 bar (2,900 psi) @ room temp.
Test Pressure: 300 bar (4,350 psi) @ Room temp.
Working temperature: Ambient to+65 °C
Length without valves: 260mm (L=0-70mm samples)
Weight without valves: 1.7 KG (L=0-70mm samples)
Material non-wetted part ;: Aluminum
Material wetted parts: SS-316L
Insulation material: Annealed PEEK/POM
Confining Valve: Autoclave
Process Valves: Swagelo`: "»r similar
O-ring materials: Viton-7;- Vton-90orKalrez
Core Sleeve Materials: FKM (Viton-75, std.) or Nitrile
Core Sleeve Dims. 1.0": I.D. 24mm x 2,0mm wall (std.)
Type of sample mounting: Direct vacuum expansion of sleeve
