Papantonatos S.A.

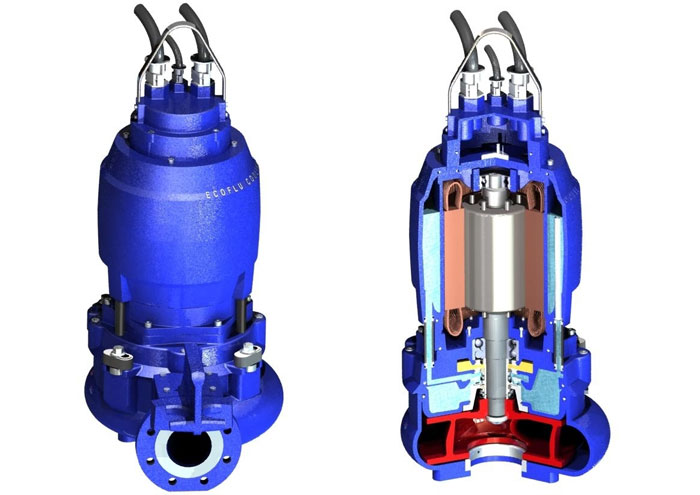

PXFLOW - Submersible Sewage Pumps
PAPANTONATOS S.A. offers a complete range of wastewater pumps up to 115kW. PXFLOW pumps have been specifically designed to be installation and maintenance friendly. They introduce a whole suite of features that make them the most useful and versatile pumps on the market
Most popular related searches
submersible sewage pump
sewage pump
head pump
submersible pump
wastewater pumping
sealing system
wastewater pump
grinder pump
vortex grinder pump
sewage
- Cartridge sealing system “Fast Seal“.
- Easily adjustable channel impeller clearance system, “Reducer”* used in all installation types, for improved performance and less clogging occurrences.
- Oil tap drain.
- Free choice* of channel or vortex impeller that can be fitted to the same volute
- Fast lock assembly/disassembly feature with only two (PX1/2) or four (PX3) or six (PX4)
- for quick and easy volute/impeller inspection (major advantage is the significant reduction of man-hours)
- Electrical motor PXFLOW – SIEMENS motor parts standard IE1 or higher efficiencyIE2 (premium efficiency IE3 as option), have Class F insulation (rated for 155 degrees Celsius) as standard (Class H rated for 180 degrees Celsius as option)
- Motor inspection hole
- Cable entry on the side of the pump cover
- Handle in Stainless steel
- Motor power up 115kW/50Hz – 180HP/60Hz.
- High head pump series, (up 110m head), with vortex impeller.
- Grinder pumps up to 13,5kW and max head 76m.
- High head pump series, (up 110m head), with vortex impeller.Grinder pumps up to 13,5kW and max head 76m
