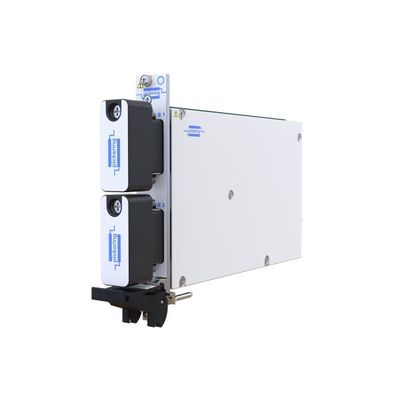

Pickering - Model 40-121-002 -PXI Switched Guard Reed Relay Module, 13x SPST

The 40-121-002 provides 13x SPST switches in a single slot PXI module and designed to provide an isolation resistance in excess of 10¹³Ω. It has been designed to ensure high isolation resistance through the use of switched guards, making it ideal for low level measurements and semiconductor test. The 40-121 series is fitted with ruthenium sputtered reed relays, these offer very long life with good low level switching performance and excellent contact resistance stability. Spare reed relays are built onto the circuit board to allow easy maintenance with minimum downtime.
